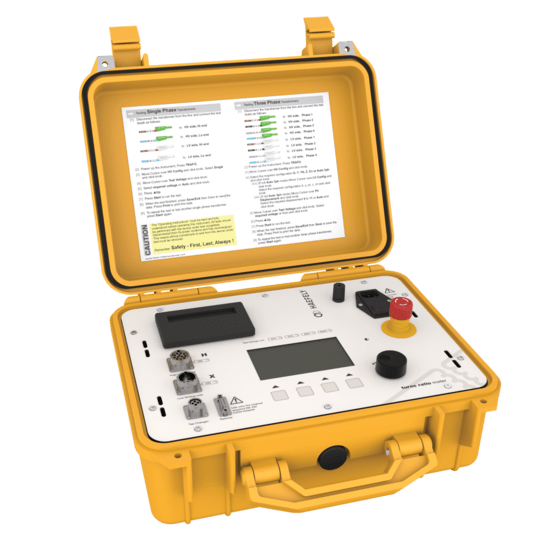

TTR 2796 Transformer Turns Ratio Meter for Substations

HAEFELY / Tettex

Fully Automatic 3 Phase 250 V Transformer Turns Ratio Meter

Transformer turns ratio (TTR) is a test that helps determine whether the substation transformer has the correct primary turns to secondary turns ratio. This test can help detect faulty transformer windings, such as open windings, improper winding connections, shorted turns, and defective tap changer positions. The excitation current and phase angle between the primary and secondary windings also provide additional information regarding the winding condition.

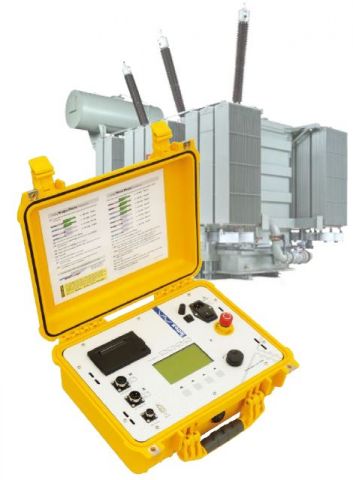

According to IEEE, IEC, and ANSI standards, the rugged and portable 2796 Fully Automated 3 Phase 250 V Transformer Turns Ratio Meter from HAEFELY is ideal for acceptance testing and on-site maintenance testing of transformers. The instrument combines mobility and user-friendly handling with an unmatched accuracy of up to 0.03%. The higher test voltage of 250 V, together with the high precision, assures authentic results, especially on large power transformers. Advanced analysis features like trending allow the user to detect problems early.

The automatic winding connection identification feature aids in finding the correct transformer configuration. Special transformers with irregular vector groups can also be measured with the optional arbitrary phase shift software. During production and in the field, the TTR 2796 is a highly valued diagnostic instrument. Within half a minute after connecting the measurement cables to the transformer terminals, the voltage ratio turns ratio, ratio deviation, excitation current, and phase deviation are displayed.

DATA SHEET:      TTR 2796 (3 phase, 250 V)

BROCHURE:     TTR 2796 3-Phase Turns Ratio Meter

                            Portable Substation & Transformer Test Equipment

TTR 2796 Features

  • Fully automated measurement of turns ratio, voltage ratio, phase displacement and excitation current.
  • Highest measurement accuracy in the industry of up to 0.03% for ratios 0.8 – 100
  • Better transformer excitation due to higher test voltage of 250 V
  • Ratios of up to 50,000 can be measured
  • Measurement of phase displacement of transformers with irregular vector groups, such as phase shifting, arc-furnace, and traction transformers
  • Simplistic user interface for quick test setup

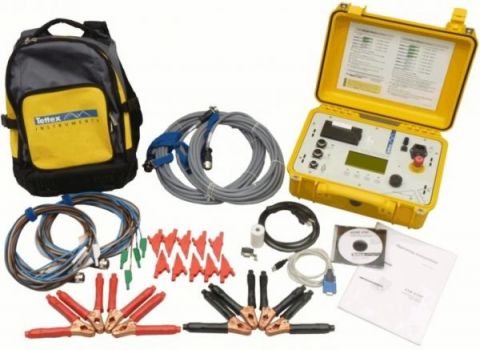

  • Color coded and labeled test leads for easy setup
  • Safety connection control feature that proofs test setup before applying regular test voltage to guarantee safety of the test personnel and instrument
  • Automatic winding connection identification (AWCI) and automatic vector group detection supports the quick and easy operation

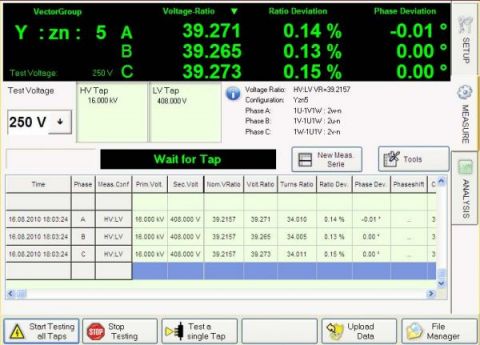

  • Remote control via laptop and application software, including automatic report generation
  • Built-in printer for quick test report generation
  • Lightweight, compact and rugged design for use in harsh environments
