UHF Partial Discharge Sensors

ohv diagnostic

Unconventional measurement technology in ultra high frequency (UHF) ranges (MHz to GHz) is commonly used for on-site PD testing. This has the added benefit that an online test (i.e., no need to shut off the equipment under test) can be conducted since the measurement method does not require galvanic coupling to the high voltage conductors. Stronger attenuation of distant signals allows for very favorable signal-to-noise ratios and locally selective PD tests.

UHF PD Sensor Models:

  • UHF passive sensor for cables, GIS, etc:    CT-1

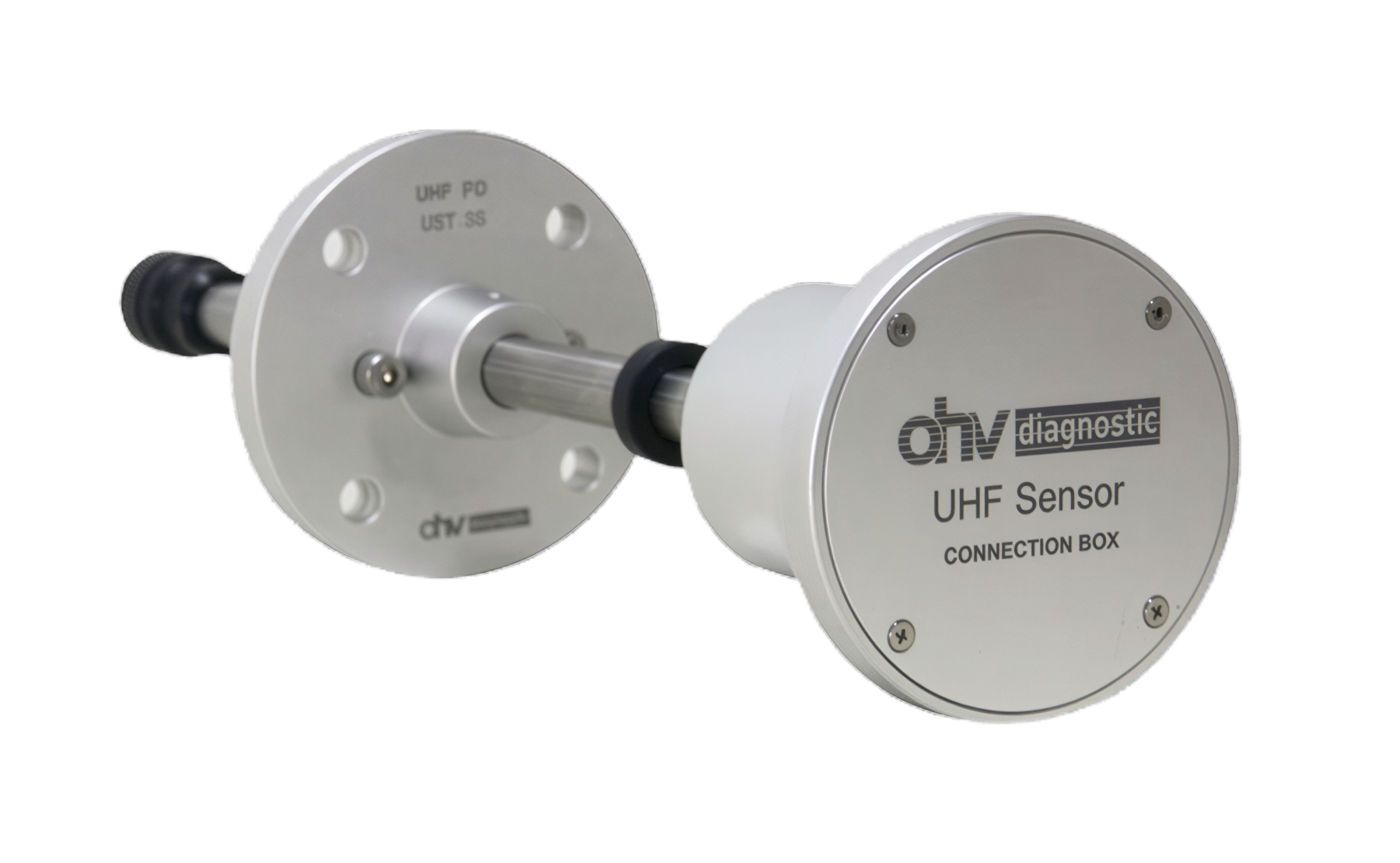

  • UHF drain valve sensor for transformers:    UHF-50/80
  • UHF bushing sensor for transformers:    Bushing UHF

Are You Interested in UHF PD Sensors?

Whether you want to learn more or would like a quote, contact us.
