Impulse Voltage Insulation Testers

EMC Partner

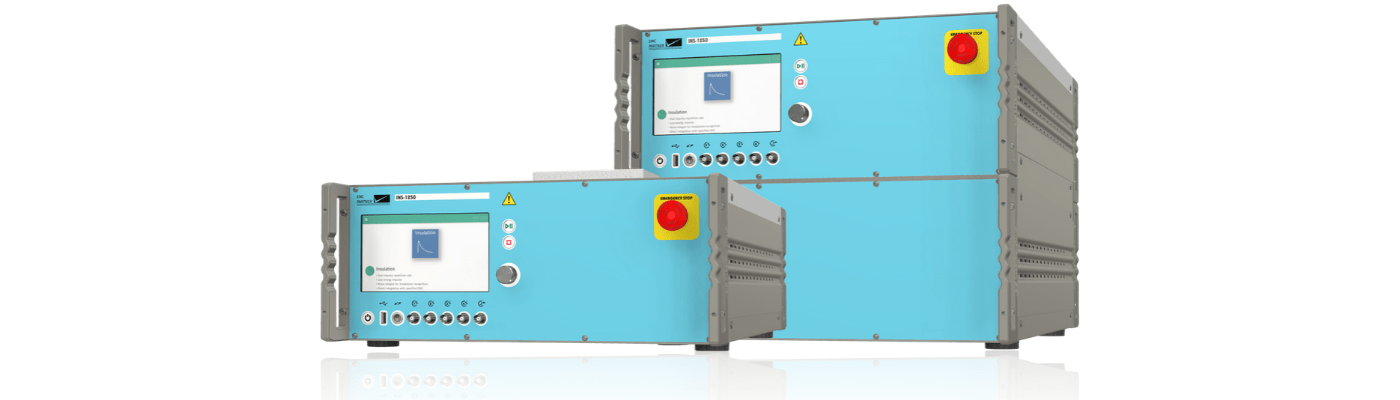

IEC 60060-1 applies to dielectric tests with alternating voltage, dielectric tests with direct voltage, dielectric tests with impulse voltage and dielectric tests with combinations of the above. The INS-1250 series of insulation testers from EMC Partner cover the 1.2/50 µs impulse voltage requirement from 500V to 30kV. The equipment can be used for material insulation, components and electrical equipment safety applications in both development and production environments. High accuracy internal or external measurement systems, can be programmed to detect breakdown with pass/fail criteria based on voltage and current impulse integrals. Personnel safety is ensured through an emergency stop, warning lamp and test cabinet, disabling high voltage circuits when activated.

Brochure:

Features:

  • Current and voltage integrals for breakdown detection
  • Upgradeable hardware to increase test capability
  • Designed for long duration production test environments
  • Impulse capacitors rated for 6 million cycles – optimal for production line testing
  • TEMA3000 automation software compatible

Applicable Standards:

  • IEC 60060-1
  • IEC 61010-1
  • IEC 61180
  • IEC 60335-1
  • IEC 60664-1
  • IEC 60747-17
  • IEC 62368-1

INS Series Models:

INS-1250-7K5

  • 1.2/50 µs voltage waveform from 500 V to 7.5 kV
  • Can be upgraded to 15 kV
  • 40 Ohm, 500 Ohm or custom impedance matching networks
  • Solid state switching
  • Electronic polarity change
  • Safety enclosure
  • Optional integrated voltage and current integral measurement for breakdown detection
  • Optional BNC monitoring of voltage and current wave shapes
  • Optional 1:1000 voltage divider probe up to 30kV

INS-1250-15K

  • 1.2/50 µs voltage waveform from 1 kV to 15 kV
  • 40 Ohm, 500 Ohm or custom impedance matching networks
  • Solid state switching
  • Electronic polarity change
  • Safety enclosure
  • Optional integrated voltage and current integral measurement for breakdown detection
  • Optional BNC monitoring of voltage and current wave shapes
  • Optional 1:1000 voltage divider probe up to 30kV

INS-1250-22K5

  • 1.2/50 µs voltage waveform from 1.5 kV to 22.5 kV
  • Can be upgraded to 30 kV
  • 40 Ohm, 500 Ohm or custom impedance matching networks
  • Solid state switching
  • Electronic polarity change
  • Safety enclosure
  • Optional integrated voltage and current integral measurement for breakdown detection
  • Optional BNC monitoring of voltage and current wave shapes
  • Optional 1:1000 voltage divider probe up to 30kV

INS-1250-30K

  • 1.2/50 µs voltage waveform from 2 kV to 30 kV
  • 40 Ohm, 500 Ohm or custom impedance matching networks
  • Solid state switching
  • Electronic polarity change
  • Safety enclosure
  • Optional integrated voltage and current integral measurement for breakdown detection
  • Optional BNC monitoring of voltage and current wave shapes
  • Optional 1:1000 voltage divider probe up to 30kV

Please contact us for any insulation testers with output voltages greater than 30 kV.

HV TECHNOLOGIES, Inc. also provides impulse voltage test equipment above 100 kV and test equipment which satisfies the other requirements from IEC 60060-1. Click on the following links for additional information:

Impulse voltage generators (greater than 100 kV)

AC/DC Test Transformers

Resonant Test Systems

VLF Hipot Testers

Are You Interested in Benchtop Impulse Generators?

Whether you want to learn more or would like a quote, contact us.
