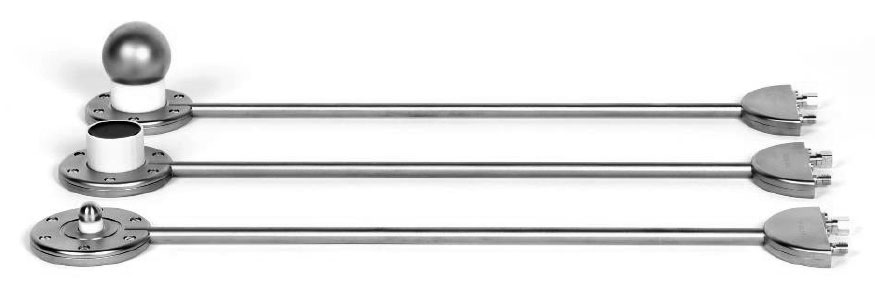

Our range of derivative ground plane electromagnetic field sensors is designed for the measurement of fast pulsed fields. Different models are available: for electric field (D-dot) and for magnetic fields (B-dot).
Because the sensors are passive, no external power source is required. These ground plane sensors can be directly connected to a high impedance input of a fast oscilloscope through a special coaxial cable and a passive integrator or connected through an analogue fibre optic link. A fibre optic link may be used if the distance from the sensor to the measurement equipment is very long.
Datasheet:
