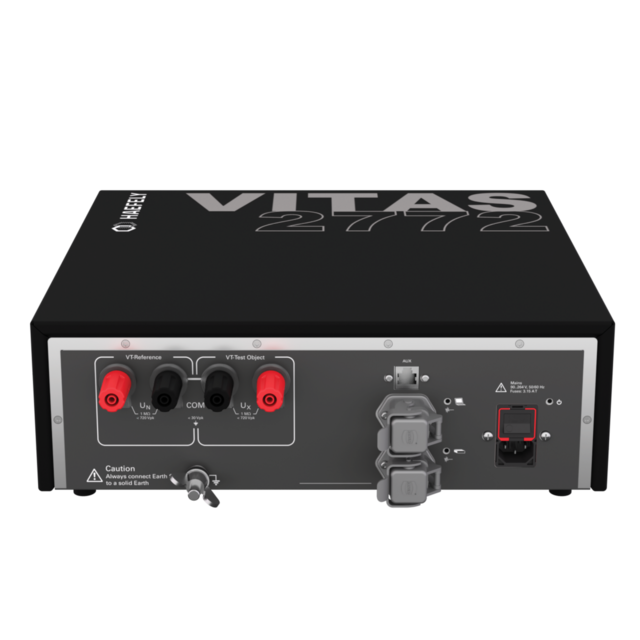

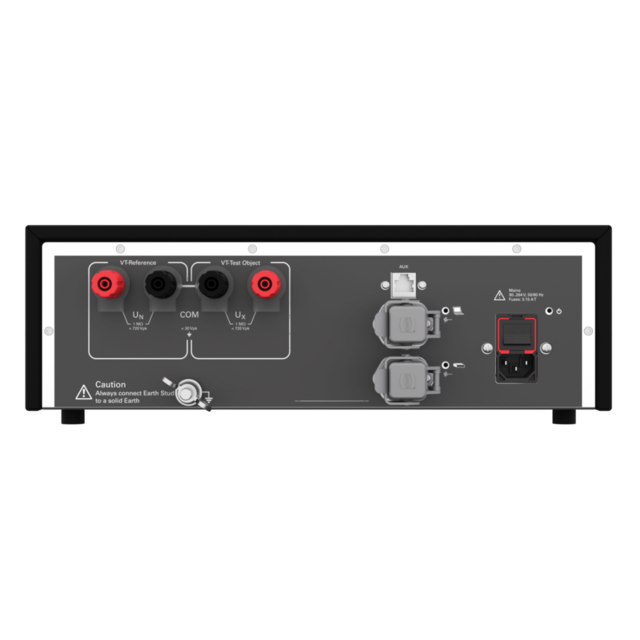

The VITAS 2772 is a fully digital voltage instrument transformer (VT) measuring bridge. It incorporates more than 70 years of knowledge in this field and state-of-the-art technologies to exceed industry requirements.
The VITAS 2772 measures ratio and phase errors according to the latest IEC and ANSI standards.
Test objects and nominal transformers with large ratio differences can be measured with full accuracy, reducing the number of reconnections during testing.
The VITAS 2772 specified accuracy is independent of excitation or environmental conditions (temperature or humidity) and guarantees highly accurate results.
Datasheet:
VITAS 2772 Voltage Instrument Transformer Features
High accuracy results independent of temperature or excitation current
Extremely large k-factor (difference between nominal transformer and test object ratios)
Computer controlled with Windows-based Haefely CaMS user interface
Automatic error limits according to IEC and ANSI/IEEE standards
Fast stabilization time
Controls Haefely 3695 electronic voltage burden
Optically decoupled from computer by fiber optic data connection
Scope function – waveshapes of the measured signals shown in real time
Datalogger – readings can be collected and represented graphically to see deviations
Compact, reliable, and EMC hardened design, IP50
