In complex EMC testing environments bidirectional transmission of electrical signals into and out of the chamber is often required. For that purpose we offer a variety of different interfaces that convert electrical signals into optical signals and back. Converting the electrical signals into optical signals makes them immune against electrical fields. A sophisticated shielding and filtering concept on the fiber optic converters ensures that the interfaces are highly immune against radiation and do not deliver out any significant emission.
Features:
RF-Immunity: Antenna radiated 200 V/m, 200 MHz –18 GHz, ISO11452-2, CW, AM, PM / Stripline 200 V/m, 10 k – 1 GHz, ISO11452-5, CW, AM, PM
Emission: EMC compliant to CISPR25 Class 5, 150 k – 4 GHz
Mains powered or battery powered
Set of 2 converters
Variable fiber optic cable lengths (ST-ST or ST-FSMA)
Multi-mode duplex fiber, 50/125 um
Fiber optic patches (feed-through connectors for bulkhead connector panel)
Brochure:
Datasheet:

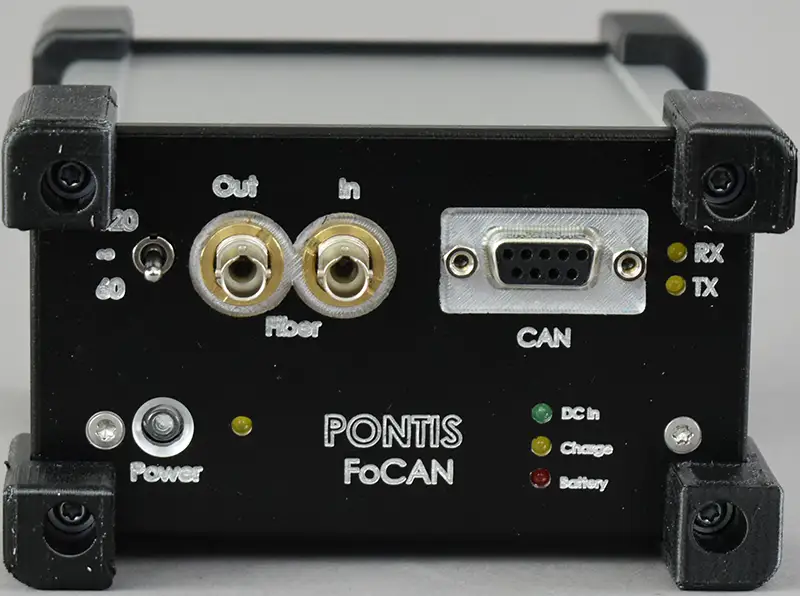

Can Converter – FOCAN
High speed ISO11989-2
50 – 1000 kBaud data signaling rate
Transparent, unbuffered data transmission
Selectable CAN bus termination 120 Ohm, 60 Ohm or none
Can operate with 24V vehicles

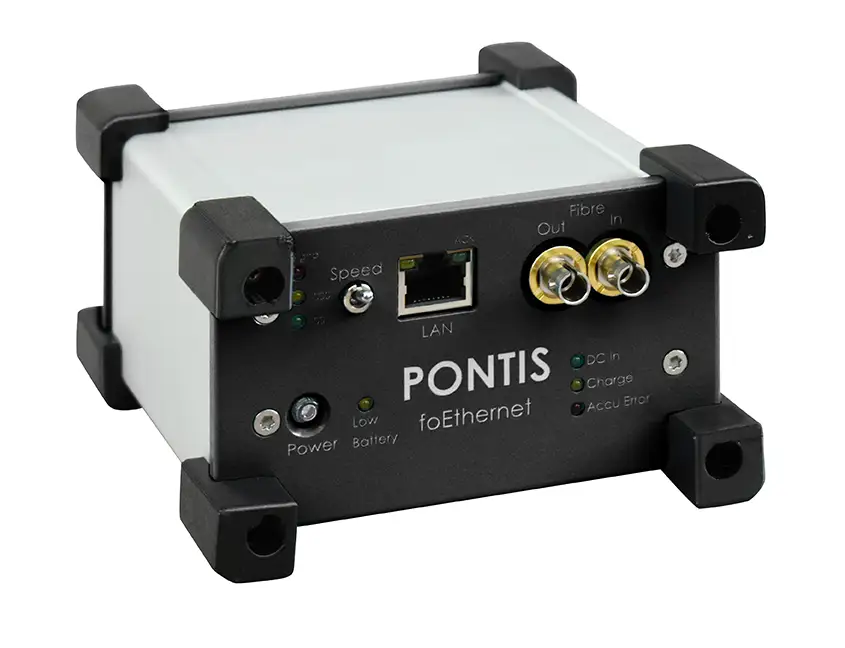

Ethernet Converter – FOETHERNET
Switchable: 100MBit/s / 1GBit/s
Bidirectional data transfer
1x RJ45 Ethernet port (4 port version available on request)
ACK and network speed indication
Automotive Ethernet – BROADR-REACH
Designed for automotive connectivity applications
Autodetect: 100Base-T1 / 1000Base-T1
Two-way data transfer

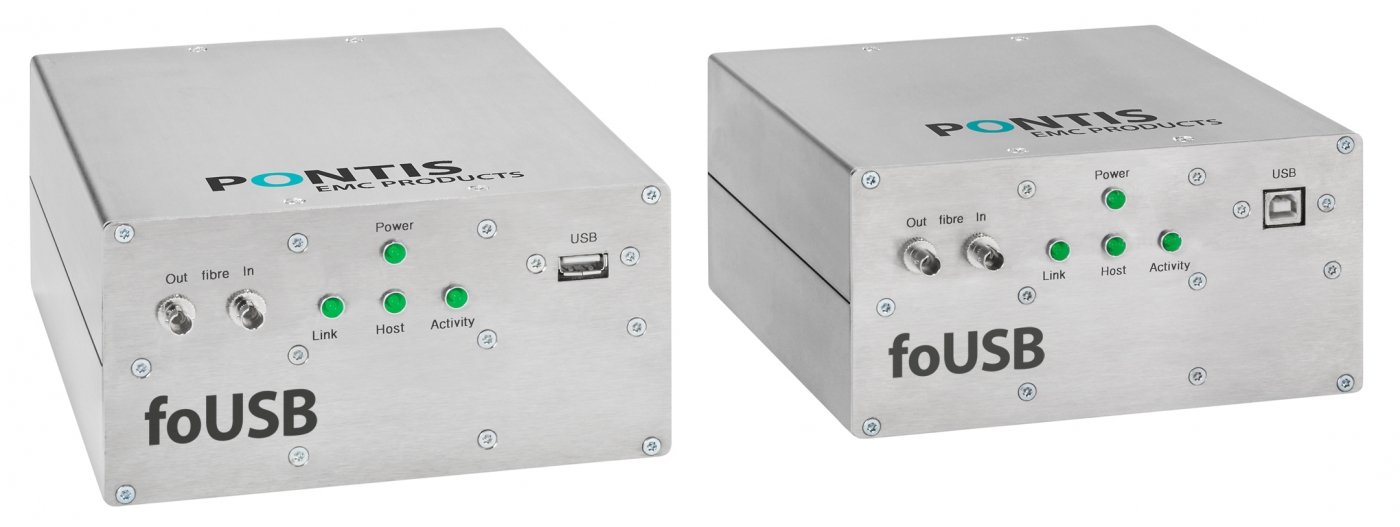

USB Converter – FOUSB
High speed (480 Mbps), full speed (12 Mbps) and low speed (1.5 Mbps) data signaling rate
Unidirectional data transfer
Converter 1 – type USB B to connect with a PC
Converter 2 – type USB A to connect with any peripheral device

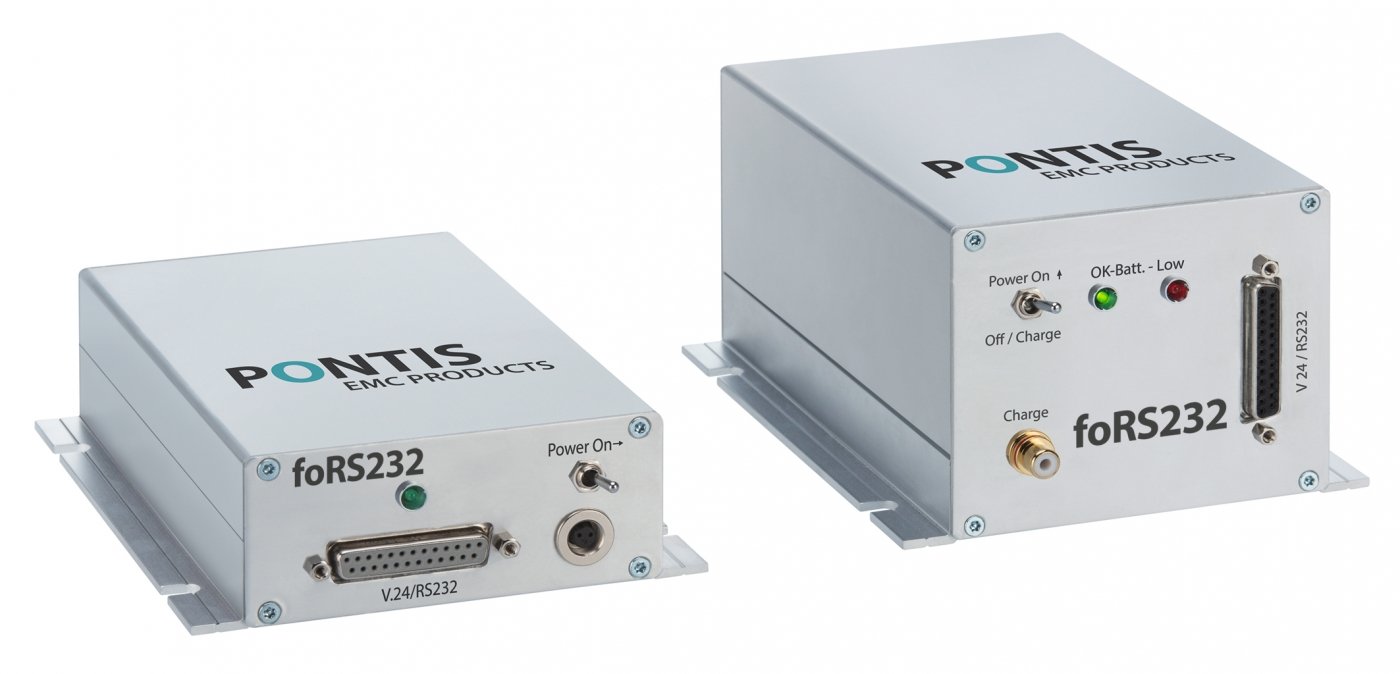

RS232 Converter – FORS232
- 8 x In, 8 x Out, each channel “RxD + TxD, without handshake” or 4x, each channel “Rx + Tx + TRS + CTS, with handshake” data signaling rate
- Bidirectional data transfer
- Up to 115 kBaud data transfer rate
- Converter 1 – satellite (shielded)
- Converter 2 – transceiver (un-shielded)
8 x In, 8 x Out, each channel “RxD + TxD, without handshake” or 4x, each channel “Rx + Tx + TRS + CTS, with handshake” data signaling rate
Bidirectional data transfer
Up to 115 kBaud data transfer rate
Converter 1 – satellite (shielded)
Converter 2 – transceiver (un-shielded)

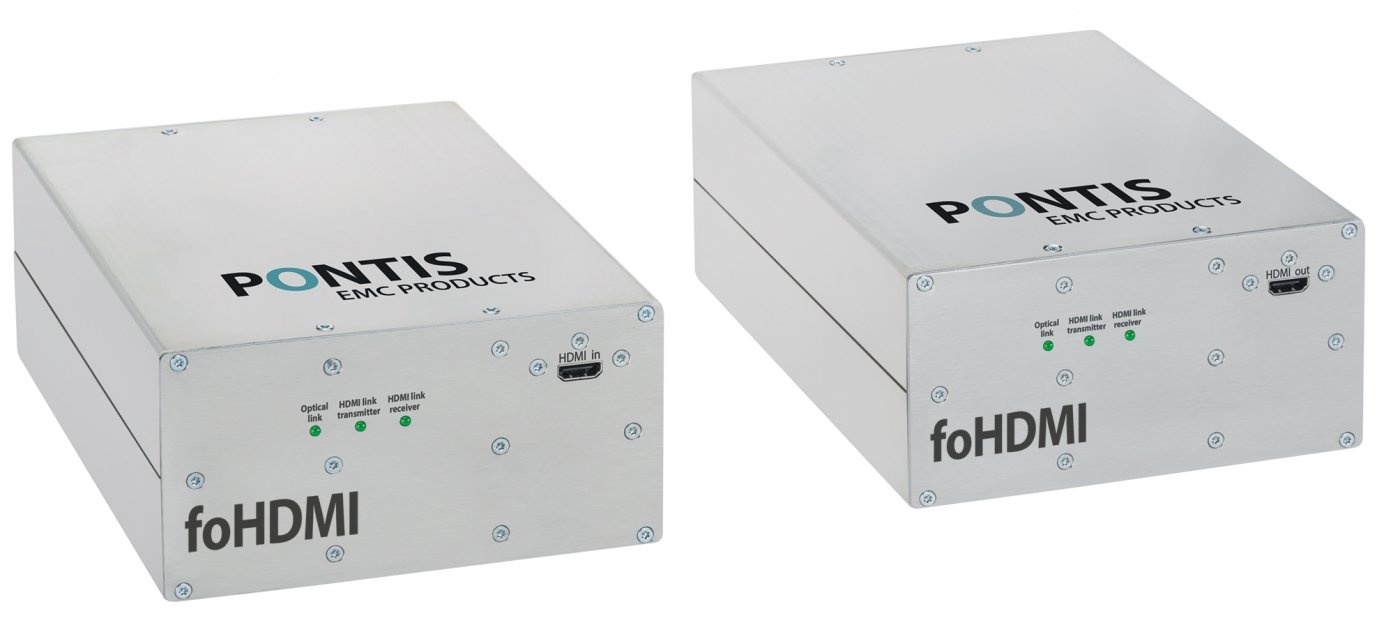

HDMI Converter – FOHDMI
- Full HD 1080p, uncompressed
- Unidirectional, 10.2 GBit/s high speed duplex transmission
- HDMI up to version 1.2, real-time transmission without delay
- Converter 1 – transmitter to connect to signal source
- Converter 2 – receiver to connect with peripheral device
Full HD 1080p, uncompressed
Unidirectional, 10.2 GBit/s high speed duplex transmission
HDMI up to version 1.2, real-time transmission without delay
Converter 1 – transmitter to connect to signal source
Converter 2 – receiver to connect with peripheral device
LIN Converter – FOLIN
- Up to 20kBit/s data signaling rate
- Bidirectional data transfer
- Can operate with 24V vehicles
- Switchable terminator
- Switchable power: from LIN-bus
Up to 20kBit/s data signaling rate
Bidirectional data transfer
Can operate with 24V vehicles
Switchable terminator
Switchable power: from LIN-bus
Shielded transmission for car charging stations
AC and DC charging
PWM, PLC and CAN data communication
GPIB, RS485, VGA and FBAS converters also available. Please contact HV TECHNOLOGIES for further information.
