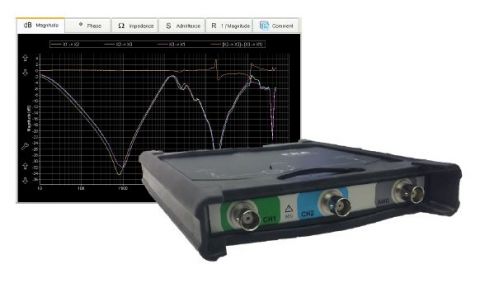

Many dielectric and mechanical failures in large power transformers are preceded by mechanical changes in the winding structure. The FRA 5311 Sweep Frequency Response Analyzer detects transformer winding movements and mechanical failures due to mechanical shock, transportation or short circuits. Detection of these displacements ahead of a dielectric failure can reduce unplanned maintenance costs, and provide the possibility to improve system reliability by preventing outages. Additionally, when damage is discovered, repairs may be targeted to a specific phase winding. Changes in the winding geometry will be reflected by deviations between repeated measurements. Even small winding movements or distortions will cause legible changes in the measured transfer function, which is clearly detectable.
Datasheet:
Brochure:
Article:
FRA 5311 Features
Frequently Asked Questions
Which industry standards does the device comply with?
The FRA 5311 performs measurements according to the following standards:
➡️ IEC 60076-18
➡️ ANSI IEEE C57.149
What is the primary purpose of the FRA 5311?
The FRA 5311 is designed to detect movements in transformer windings and mechanical failures caused by short circuits, transportation, or mechanical shock. It identifies these changes by measuring the unique “fingerprint” (transfer function) of the winding’s complex R-L-C network.
What types of measurements can it perform?
The device can measure the following parameters:
✔️ Magnitude (dB)
✔️ Phase (°)
✔️ Impedance (\Omega)
✔️ Admittance (S)
✔️ Ratio
What are the main advantages of using this specific analyzer?
➡️ Portability: It is the smallest and lightest device in the industry.
➡️ Ease of Use: It requires only a single USB connection for both data and power.
➡️ High Signal Quality: It offers a high signal-to-noise ratio due to an output voltage of up to 11Vpp at 50Ω.
➡️ Measuring Points: Up to 2,000 points per measurement.
Why is this test necessary?
Mechanical changes in the winding structure often precede major dielectric or mechanical failures.
SFRA identifies issues caused by:
➡️ Mechanical shock or stresses during transportation.
➡️ Short circuits that generate internal mechanical forces.
➡️ Winding distortions or small movements that are otherwise difficult to detect.
Is the FRA 5311 compatible with data from other manufacturers?
Yes. The software can load measurements from other manufacturers using the IEC 60076 XML format. It specifically supports opening files from Doble (.sfra) and Megger (.frax).
What is the frequency range for a typical sweep?
The test covers a broad spectrum to ensure all mechanical aspects are analyzed. The FRA 5311 allows for a selectable range from 10Hz to 10MHz.
How is the equipment connected to the transformer?
Connections are made using specialized hardware to ensure repeatability and speed:
➡️ Measuring Clamps: Used for flat or circular terminals up to 60mm in diameter.
➡️ Twin BNC Cables: Used for the generator and source signals.
➡️ Ground Tapes: Aluminum braids provide a low-impedance ground connection as recommended by IEC 60076-18.
Why is SFRA performed on power transformers?
SFRA detects mechanical and structural issues that other electrical tests often miss, including:
➡️ Winding deformation (radial or axial)
➡️ Core movement or deformation
➡️ Shorted turns or open circuits
➡️ Tap changer mechanical issues
➡️ Core grounding faults
➡️ Transportation or short‑circuit damage
These issues alter inductance, capacitance, and resistance, which appear as changes in the frequency response curve.
What frequency ranges are analyzed and what do they indicate?
SFRA interpretation is based on three frequency bands:
➡️ Low frequency (10 Hz – 2 kHz): Core condition, core grounding, residual magnetization
➡️ Mid frequency (2 kHz – 200 kHz): Winding movement, radial/axial deformation
➡️ High frequency (200 kHz – 25 MHz): Inter‑disk spacing, lead movement, bushing or dielectric geometry issues
When should SFRA testing be performed?
Common scenarios include:
✔️ After transportation or relocation
✔️ After short‑circuit events or through‑faults
✔️ During routine maintenance intervals
✔️ Before energizing a new transformer (factory or site acceptance)
✔️ When abnormal vibration or unusual electrical behavior is observed
Is baseline (fingerprint) data required?
Baseline data is highly recommended and provides the most reliable comparison.
If unavailable, technicians compare:
✔️ Phase‑to‑phase responses (for symmetrical three‑phase units)
✔️ Sister units of identical design
Can SFRA be performed before oil filling?
Yes. SFRA can be performed on a new transformer before oil filling, but results must be compared only with other pre‑oil measurements because oil affects high‑frequency behavior.
Does ambient temperature affect SFRA results?
Yes. Temperature changes can slightly influence response signatures, especially at low frequencies. Technicians should document ambient and oil temperatures for consistent comparison.
How important is grounding during SFRA testing?
Proper grounding is critical. Incorrect grounding introduces noise and ground loops, especially in low‑frequency regions, leading to misleading results. A single‑point grounding scheme is the industry standard.
Do test leads affect SFRA measurements?
Yes. Lead configuration is one of the largest sources of variation.
Best practices include:
✔️ Using identical lead lengths
✔️ Keeping routing consistent
✔️ Avoiding movement during testing
✔️ Using dedicated reference leads for baseline tests
Can SFRA be used on dry‑type transformers?
Yes. Lead configuration is one of the largest sources of variation.
Best practices include:
✔️ Using identical lead lengths
✔️ Keeping routing consistent
✔️ Avoiding movement during testing
✔️ Using dedicated reference leads for baseline tests
What are common signs of mechanical issues in SFRA results?
➡️ Shifted resonance peaks
➡️ Missing or new peaks
➡️ Large amplitude deviations
➡️ Asymmetry between phases
These patterns indicate deformation, loose clamping, shorted turns, or connection issues.
Should SFRA be part of a routine maintenance program?
Yes. SFRA is increasingly considered a standard condition‑assessment tool, especially for critical or aging transformers. It provides early detection of mechanical deterioration before catastrophic failure.
