HV TECHNOLOGIES, Inc. is proud to be partnered with PONTIS EMC offering the highest quality EMC hardened cameras, audio systems and fiber-optic converters. These systems are used for optical and acoustic monitoring of devices under test (DUT) as well as interference-free data transmission of various types of signals.
EMC shielded housing, specially filtered power supplies and signal transmission via fiber optics are common to all our products. For that reason the emissions are way below the standard limits and the immunity above the usual requirements. Only the highest quality components find the way into our products. This ensures that the mechanical and even more important, the optical features, of all camera systems are outstanding. The quality of the lens and the CCD chip in the camera module are crucial for a good surveillance system. Where suitable we use Pentax® lenses and 1/3″ CCD cameras to gain the best possible resolution and light sensitivity.
PONTIS EMC products come with a standard 2 year factory warranty covered by HV TECHNOLOGIES in North America. Field proven quality and extremely low defect rates result from consequent quality management and intensive testing.
BROCHURE:
Request a Quote
EMC Hardened Video and Audio Systems
When performing EMC emissions testing, monitoring the device under test (DUT) without interfering with the measurement is important. During EMC immunity testing, the monitoring system has to withstand the high field strengths generated during testing.
All devices containing electronic components—from a small electric shaver to automobiles—are subject to EMC compliance testing. PONTIS EMC hardened audio and video products cover a wide range of applications including:
Small pre-compliance EMC/ EMI test chambers, including GTEM cells
Large Automotive and Military/Aerospace/Avionics test sites
High-Intensity Radiated Field (HIRF) testing
N(EMP) testing
Specialized/Difficult light applications (monitoring temperature-critical components/ batteries, displays or lights in a car’s dashboard)
High-Voltage Direct Current stations (HVDC), including converter halls

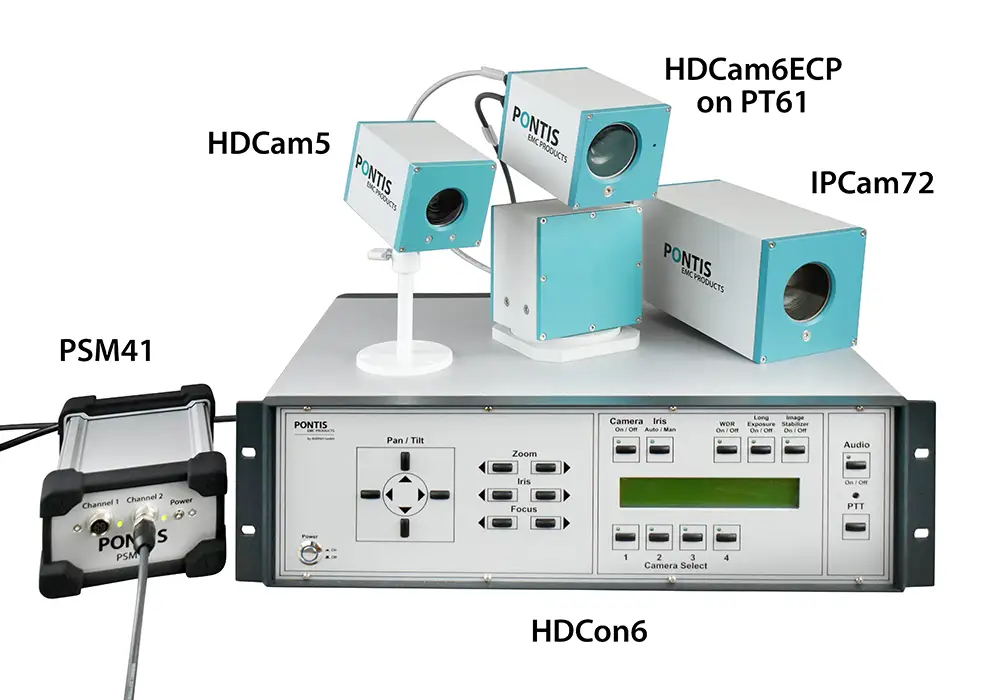

HD Cameras
Modern mobile devices, PCs, and TVs utilize displays with very high resolution. In this case, analog video may not offer enough resolution. The HDCam6 and HDCam7 cameras offer full-HD, uncompressed format (HD-SDI) with resolutions up to 1920*1080 pixels from sensor to display. In order to control and handle the massive data streams, these HD cameras need to be connected to HD controllers. We can configure these controllers to drive up to 4 cameras, including audio interfaces.

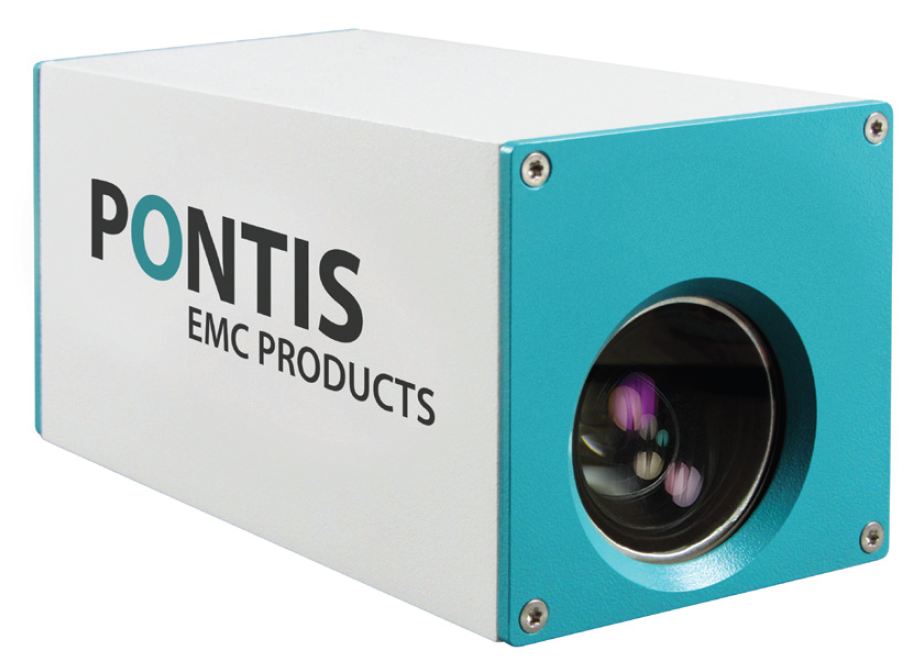

IPCam72
Top-of-the-line HD camera for high demands. IP/Network controlled.
RF-Immunity 200 V/m up to 18 GHz
Usage examples: EMC emission & immunity testing, integration into networked surveillance systems
1,920 x 1,080 full HD (H.264, H.265, MJPEG, MPEG), Zoom: 32x optical
Automatic focus and white balance
Streaming: Unicast (20 users) / Multicast Multiple streaming (up to 10 profiles)
Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security: HTTPS (SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Application Programming Interface: ONVIF Profile S/G/T, SUNAPI (HTTP API), Wisenet open platform
Optional Controller with integrated PECOS software providing Ethernet LAN access and DVR for customized event detection and recording
EMC compliant to CISPR 25 Class B, EN 61000-4-3
Brochure:

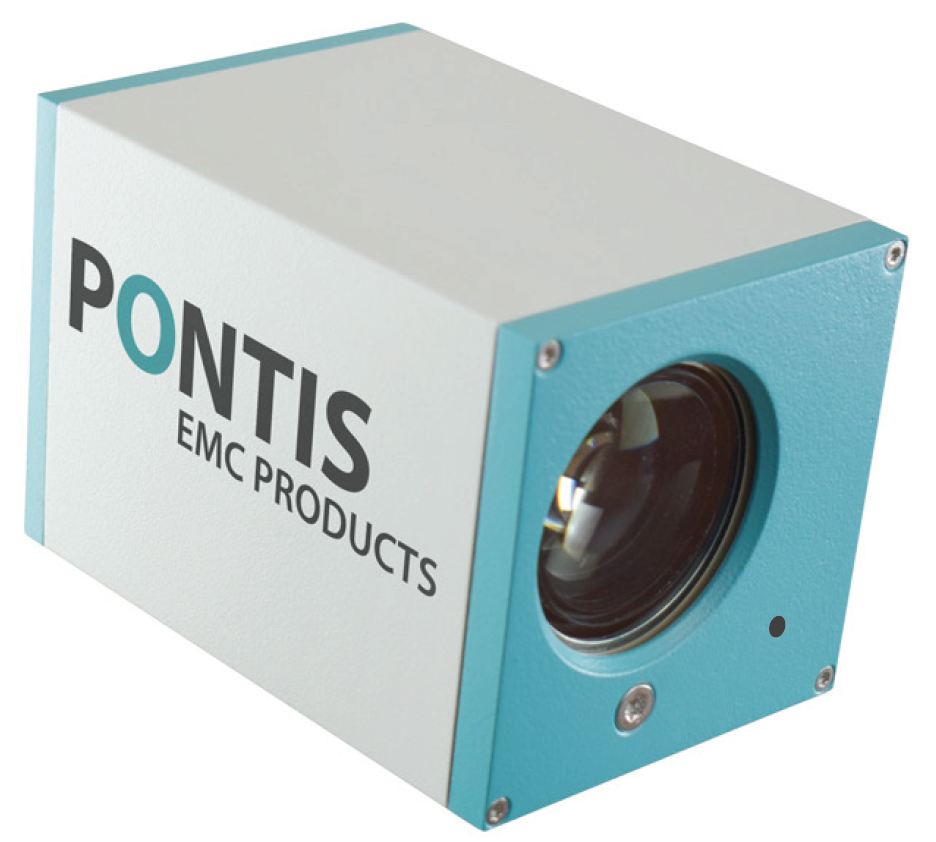

HDCam75
Top-of-the-line HD camera for high demands. Extended features are available.
HD-SDI video signal (1080p, no data reduction)
1,920 x 1,080 full HD resolution
40x optical zoom / 12x digital zoom
Motorized pan/tilt
Integrated microphone
Automatic and manual Iris Control available for low light conditions
Immunity ISO11452-1/2/5 – Standard model 200 V/m up to 18GHz. HIRF model 1000 V/m (PM) up to 18GHz
Emissions CISPR 25 Class 5 -20dB
Brochure:
HDCam6ECP
Economic HD camera for basic demands
HD-SDI video signal (1080p, no data reduction)
1,920 x 1,080 full HD resolution
30x optical zoom
Motorized pan/tilt
Automatic Iris Control available for low light conditions
Immunity ISO11452-1/2/5 – 200 V/m up to 18GHz
Emissions CISPR 25 Class 5
Brochure:
HDCam5
Compact HD camera for small areas (GTEM, Vehicles etc.)
HD-SDI video signal (1080p, no data reduction)
1,920 x 1,080 full HD resolution
10x optical zoom
Motorized pan/tilt
Immunity ISO11452-1/2/5 – 200 V/m up to 18GHz
Emissions CISPR 25 Class 5 -10dB
Brochure:
Special Application Cameras
PONTIS EMC also specializes in the design and development of custom application-hardened camera systems:

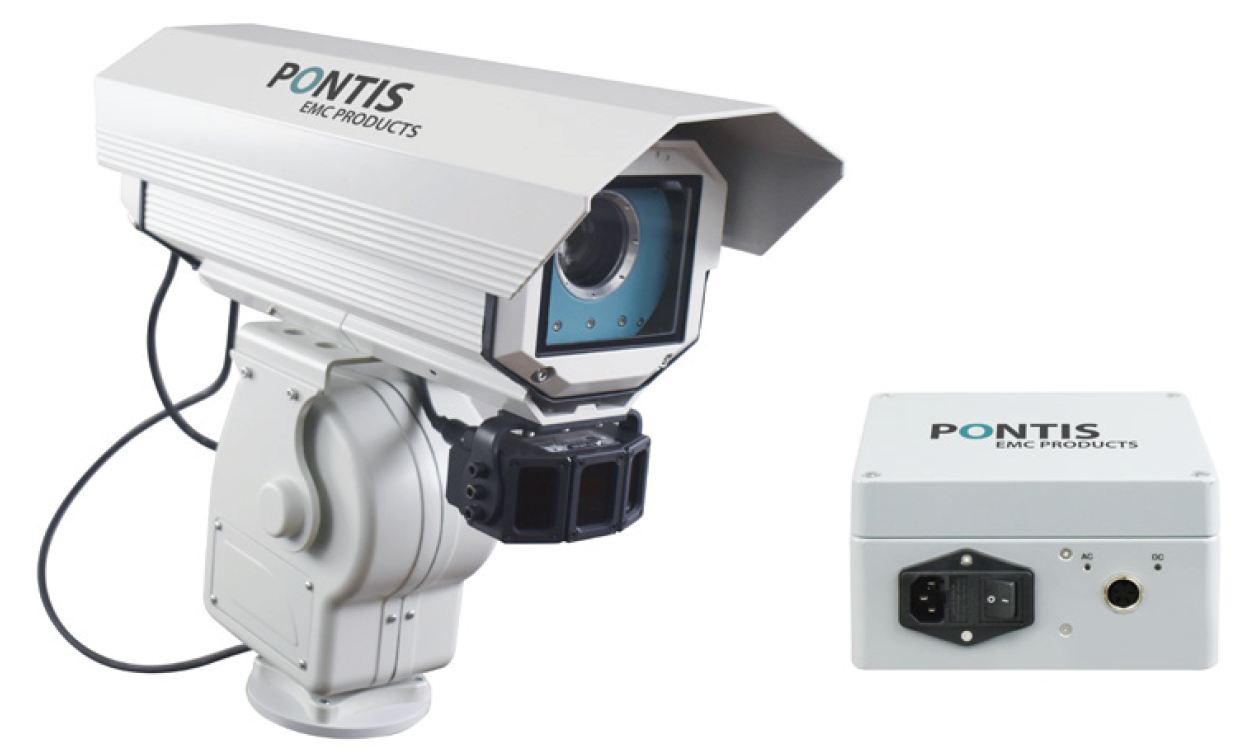

IPCam7-OD – EMC Hardened HD IP Color Camera
EMC immunity up to 200 V/m
24/7 Outdoor use, lightning-safe (weather protected per IP64 -20°C to +60°C with optional -30°C to +75°C)
Usage examples: border control, vicinity of radar/ antennas, traffic surveillance, military & government buildings
IP Cam with ONVIF or data communication (Ethernet) via fiber optic cables
1,920 x 1,080 full HD (H.264, MJPEG, MPEG-4), Zoom: 32x optical, 16x digital
Extended features: manual iris control, including wide dynamic range, Long exposure, image stabilizer, remote controlled Pan/Tilt
Available IR-Lamp for night/dark environments
Brochure:

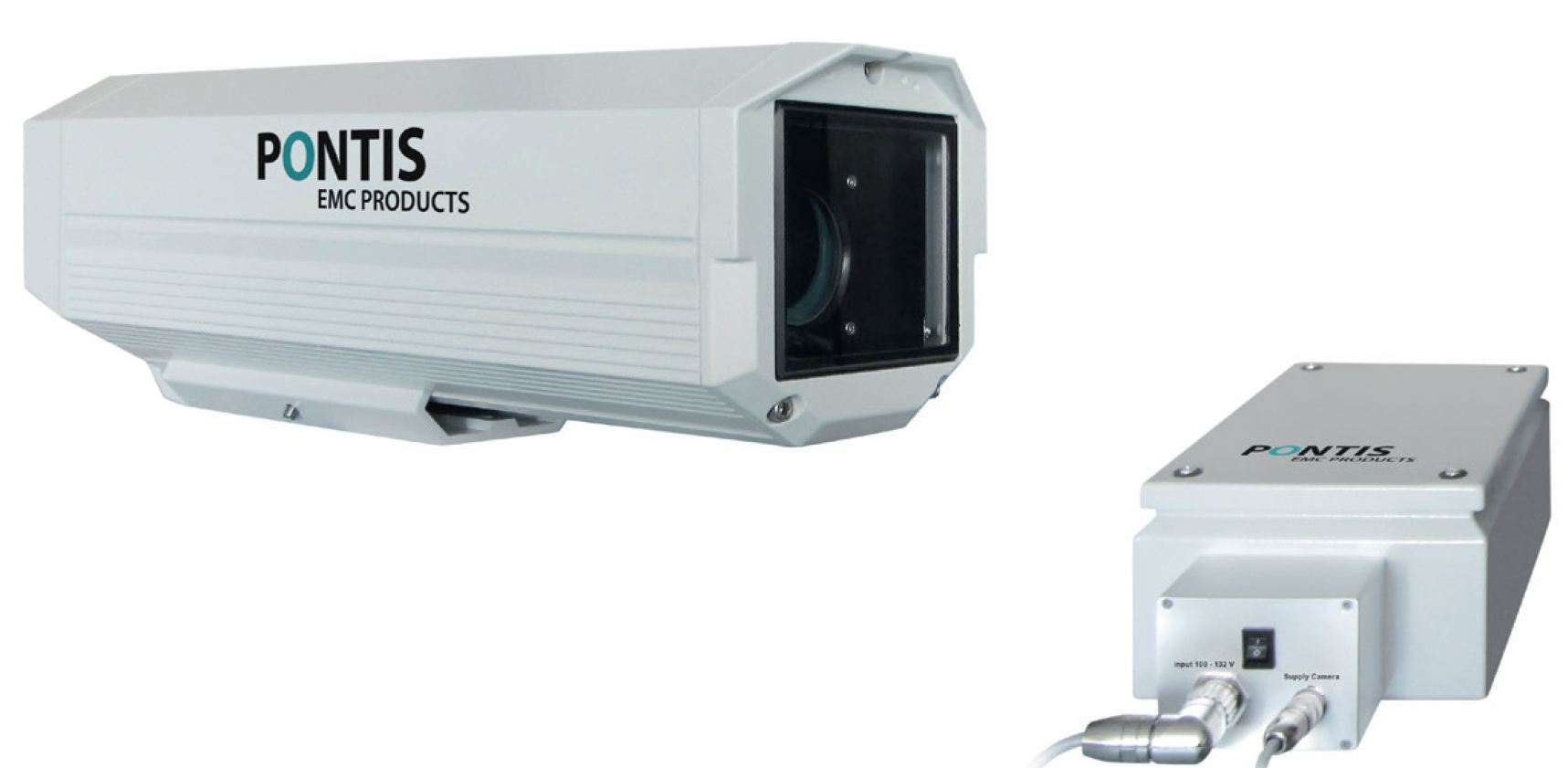

(N)EMPCam – E1 & E2 Hardened HD IP Color Camera
Shielded for (nuclear) electro-magnetic pulse: short pulse E1 & intermediate pulse E2
24/7 Outdoor use, lightning-safe (weather protected per IP65 -20°C to +60°C with optional -30°C to +75°C)
Usage examples: border control, vicinity of radar/ antennas, traffic/object surveillance, military & government buildings
IP Cam with ONVIF or data communication (Ethernet) via fiber optic cables
1,920 x 1,080 full HD (H.264, MJPEG, MPEG-4), Zoom: 32x optical, 16x digital
Extended features: manual iris control, including wide dynamic range, long exposure, image stabilizer, remote controlled Pan/Tilt
Compliance: MIL-STD-188-125-1 Department of Defense Interface Standard: High-Altitude Electromagnetic Pulse (HEMP) Protection for Ground-Based C4I Facilities Performing Critical, Time-Urgent Missions
Brochure:

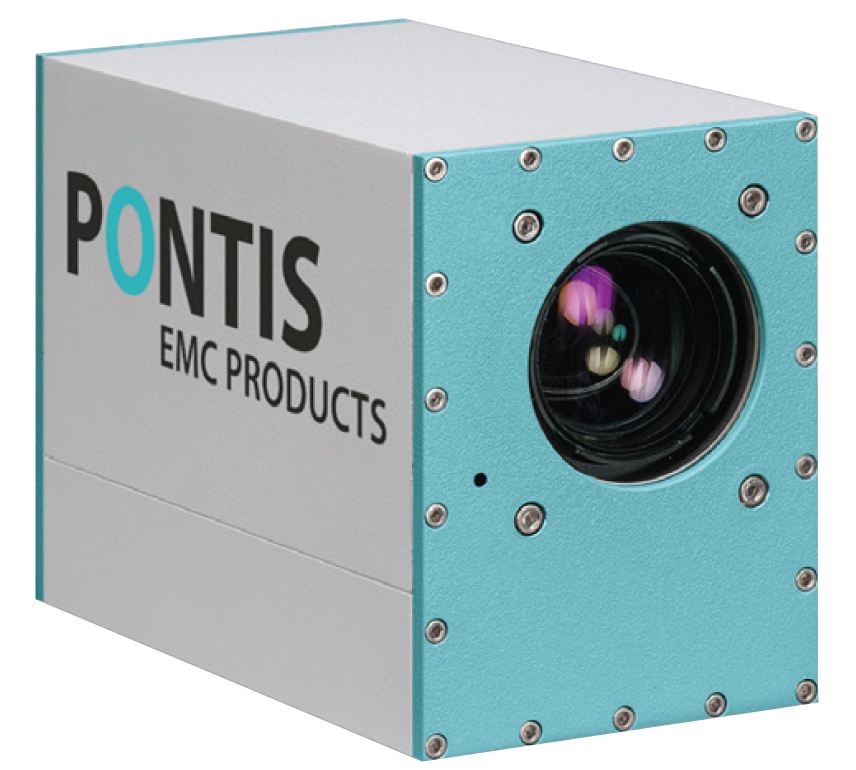

HDCam7HIRF – HIRF Hardened Colour Camera
Full HD camera designed to meet High-Intensity Radiated Field (HIRF) environments
0 ° to +50 °C / 20 to 80 % RH
Usage examples: EMC testing, avionics testing, difficult light conditions, surveillance and monitoring in military/government facilities
1,920 x 1,080 full HD (H.264, MJPEG, MPEG-4), Zoom: 30x optical, 12x digital
Extended features: manual iris control, including wide dynamic range, long exposure, image stabilizer, remote controlled Pan/Tilt
Optional Controller with integrated PECOS software providing Ethernet LAN access and DVR for customized event detection and recording
EMC compliant to CISPR 25 Class 5, -20 dB, ISO 11452
Compliance: RTCA-DO-160, G with field strengths of up to 3000 v/m (PM)
Compliance: RTCA-DO-160, Q 1000 v/m to 18 GHz (PM)
Brochure:

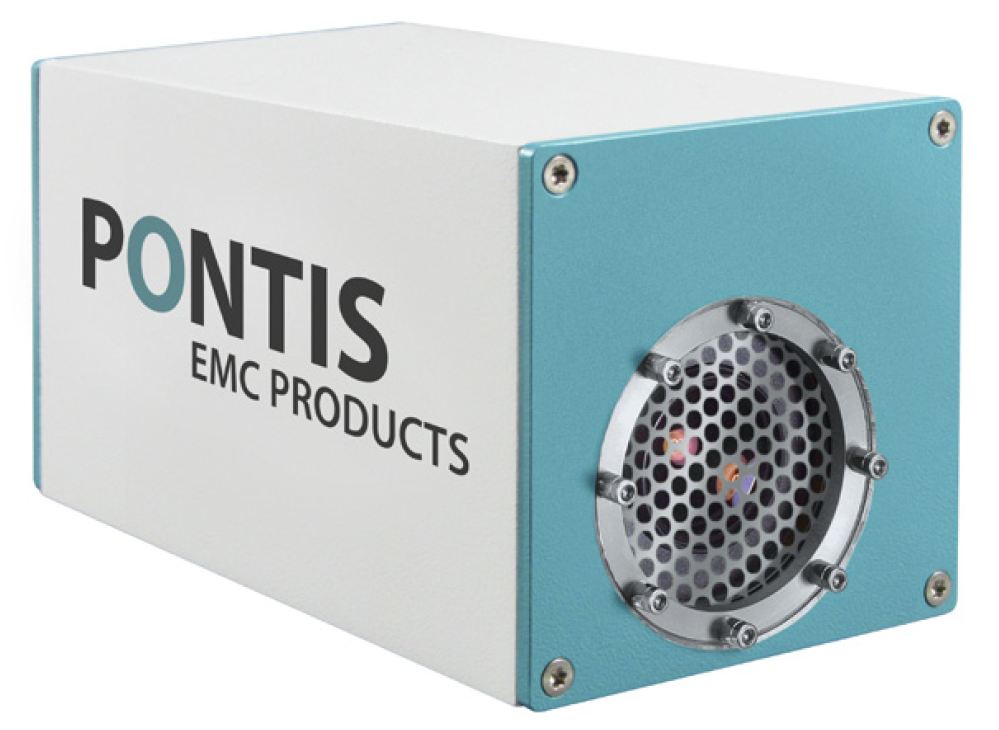

IRThermo6 – IR Thermal Camera
Designed to observe the temperature of thermal critical areas and devices in harsh electromagnetic environments or where low emission is required
0 ° to +50 °C / 20 to 80 % RH
Usage examples: EMC test facilities (EUT monitoring), temperature surveillance of absorbers in high field strength testing,
Temperature range for measurement: 0 °C to 300 °C (optional 0 °C to 1,000 °C)
Spectral range 8 to 14 μm
640 x 480 @ 32 Hz
Features: remote controlled Pan/Tilt, fail-safe relay switches via controller
Optional Controller with integrated PECOS software providing Ethernet LAN access and DVR for customized event detection, with heat overlay, and recording
EMC compliant to CISPR 25 Class 5, ISO 11452
Compliance: field strengths of up to 200 v/m up to 18 GHz
Brochure:
Explore our blog on Shielded Cameras and discover how they protect signal integrity, reduce interference, and capture truth exactly as it was meant to be seen.
Request a Quote
Frequently Asked Questions
Why are fiber optic links mandatory for data transmission in EMC hardened cameras?
Copper cables act as unintended antennas, either radiating RF energy into an emissions test setup or picking up high-field electromagnetic energy during immunity testing, which distorts both the video signal and the test environment. By utilizing specialized fiber optic data communication (such as the ONVIF-compliant IP systems or uncompressed HD-SDI streams), PONTIS EMC systems achieve complete electrical isolation. Fiber optics prevent external electromagnetic noise from entering or escaping the camera housing, preserving absolute signal integrity.
How do shielded housings and filtered power supplies contribute to maintaining low emissions and high immunity?
Effective EMC monitoring requires that the test equipment itself remains virtually invisible inside the chamber. HV Technologies’ cameras feature specialized EMC-shielded housings combined with intensively filtered power supplies. This dual-layer protection ensures that any minor high-frequency emissions generated by internal camera processors are fully contained, driving ambient emissions well below stringent baseline limits while simultaneously providing an immunity barrier against external fields.
Which aerospace and aviation standards do HV Technologies' HIRF-hardened cameras comply with?
For high-intensity radiated field testing, the HDCam7HIRF is engineered to meet severe aerospace criteria. It is certified compliant with RTCA-DO-160, Category G (handling field strengths of up to 3,000 V/m, Pulse Modulated) and Category Q (withstanding 1,000 V/m up to 18 GHz, Pulse Modulated). This compliance makes it an authoritative solution for monitoring avionics and military aerospace subsystems under extreme electromagnetic conditions.
Can these camera systems be deployed in environments vulnerable to Nuclear Electromagnetic Pulses (NEMP)?
Yes. The specialized (N)EMPCam is purpose-built to survive and operate continuously through short pulse (E1) and intermediate pulse (E2) high-altitude electromagnetic disturbances. It complies directly with the MIL-STD-188-125-1 Department of Defense Interface Standard, which regulates high-altitude electromagnetic pulse (HEMP) protection for ground-based C4I facilities performing critical, time-urgent missions.
What automotive standards do the HDCam series cameras satisfy?
The HDCam line (including the HDCam75, HDCam6ECP, and HDCam5) is optimized for automotive components and full-vehicle testing. They adhere strictly to:
- Emissions: CISPR 25 Class 5 (with select models achieving Class 5 -20dB or -10dB), ensuring the camera does not interfere with ultra-sensitive automotive receiver measurements.
- Immunity: ISO 11452-1/-2/-5, proving resilient against field strengths of 200 V/m up to 18 GHz.
What unique challenges do High-Voltage Direct Current (HVDC) stations present, and how are they addressed?
Standard thermal imaging equipment fails under harsh RF exposure. The IRThermo6 IR Thermal Camera is explicitly designed to observe temperature-critical zones (such as Device Under Test batteries, displays, or chamber RF absorbers) in extreme electromagnetic environments. It operates across a spectral range of 8 to 14 μm, covers temperatures from 0°C to 300°C (expandable to 1,000°C), and maintains complete EMC compliance up to 200 V/m at 18 GHz with options supporting up to 1,000 V/m.
How do network-controlled IP cameras maintain cybersecurity in sensitive military or government testing sites?
Networked models like the IPCam72 balance high-definition streaming with rigorous defense-in-depth security architecture. They support secure transport layers and authentication protocols including HTTPS (SSL/TLS), 802.1X Authentication (EAP-TLS, EAP-LEAP), Digest Login Authentication, and IP Address Filtering. This ensures that video streams routed across local networks or recorded via PECOS software remain completely secure from unauthorized intercept.
