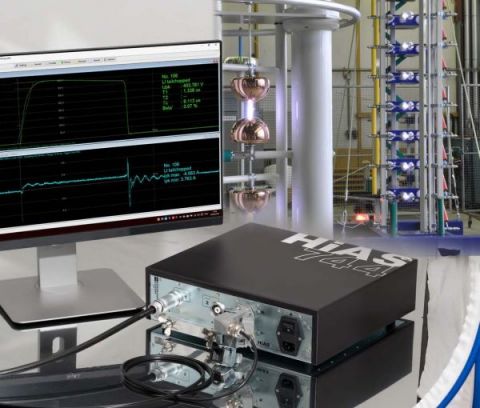

Haefely, the pioneer company for impulse testing since 1904, has been continuously developing and upgrading high voltage impulse measuring/analyzing solutions over the years. The latest in a long line of distinguished impulse analyzers is the Highest Resolution Impulse Analyzing System HiAS™ 744.

Haefely has set a new benchmark with unbeatable performance. The new front-end solution provides up to 16-bit resolution at 250 MS/s with the highest measurement accuracy. Software, which has been upgraded to suit the new hardware, retains the comfortable interface proven and tested by many hundreds of satisfied users, and continues to be compatible with the former versions of data files of the HiAS™, allowing data comparison to older measurements.

The optically decoupled front end provides complete galvanic isolation between control room and test field. This guarantees the highest safety level for operating personnel and in addition minimizes ground loop, resulting in a reduced interference coupling.

Datasheet:

HiAS 744 Impulse Analyzing System

HiAS 744 Features

Models featuring 11-bit resolution at 125 MS/s, 50 MHz analog bandwidth or 16-bit resolution at 250 MS/s, 100 MHz analog bandwidth

Optically decoupled front-end solution

2000 Vpk down to 5 Vpk analog input range with LEMO 4S connector

1 or 2 channel digitizer unit and can be expanded up to 4 channels

Exceeds latest IEC 61083-1,-2, IEC 60060-2, IEEE Std. 4 and related standards

4th Generation digitizer from Haefely

Mains powered

The highest measurement accuracy in the market

Excellent interference immunity and safe operation

Integrated solution, no additional divider necessary, compatible with any divider ratio

Synchronous multi-channel record

Compliant, advanced, state-of-the-art solution

Software and solution proven by many hundreds of users

No battery pack or recharge needed

HiAS 744 Basic Specifications

Data Aquisition

[tfdt_module admin_label=”Data Acquisition” module_id=”high-precision-tan-table” _builder_version=”4.27.4″ _module_preset=”default” hover_enabled=”0″ global_colors_info=”{}” sticky_enabled=”0″][tfdt_module_row text1=” ” tag1=”th” text_align1=”center” text2=”HiAS 744″ tag2=”th” text_align2=”center” text3=”HiAS 744-S” tag3=”th” text_align3=”center” text4=”HiAS 744-REF” tag4=”th” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” hover_enabled=”0″ global_colors_info=”{}” sticky_enabled=”0″][/tfdt_module_row][tfdt_module_row text1=”Amplitude Resolution” text_align1=”center” css_class1=”blue-bold-td” text2=” 11 bit (0.05%)” text_align2=”center” text3=” 16 bit (0.0015%)” text_align3=”center” text4=”16 bit (0.0015%)” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][tfdt_module_row text1=”Sampling Rate” text_align1=”center” css_class1=”blue-bold-td” text2=”1 … 250 MS/s” text_align2=”center” text3=”1 … 250 MS/s” text_align3=”center” text4=”1 … 250 MS/s” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][tfdt_module_row text1=”Analog Bandwidth” text_align1=”center” css_class1=”blue-bold-td” text2=”≥ 50 MHz” text_align2=”center” text3=”≥ 100 MHz” text_align3=”center” text4=”≥ 100 MHz” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][tfdt_module_row text1=”DC Accuracy” text_align1=”center” css_class1=”blue-bold-td” text2=”± 0.25% RD ± 0.02% FS” text_align2=”center” text3=”± 0.20% RD ± 0.02% FS” text_align3=”center” text4=”± 0.15% RD ± 0.02% FS” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][tfdt_module_row text1=”Memory Depth” text_align1=”center” css_class1=”blue-bold-td” text2=”2 MS” text_align2=”center” text3=”2 MS” text_align3=”center” text4=”2 MS” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][tfdt_module_row text1=”Measuring Inputs” text_align1=”center” css_class1=”blue-bold-td” text2=”1 or 2 channels” text_align2=”center” text3=”2 channels” text_align3=”center” text4=”2 channels” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][/tfdt_module]

Overall System Accuracy

[tfdt_module admin_label=”Overall System Accuracy” module_id=”high-precision-tan-table” _builder_version=”4.27.4″ _module_preset=”default” hover_enabled=”0″ global_colors_info=”{}” sticky_enabled=”0″][tfdt_module_row text1=” ” tag1=”th” text_align1=”center” text2=”HiAS 744″ tag2=”th” text_align2=”center” text3=”HiAS 744-S” tag3=”th” text_align3=”center” text4=”HiAS 744-REF” tag4=”th” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” hover_enabled=”0″ global_colors_info=”{}” sticky_enabled=”0″][/tfdt_module_row][tfdt_module_row text1=”Full and tail chopped Impulses (SI, LI)” text_align1=”center” css_class1=”blue-bold-td” text2=”± 1.5% Upk” text_align2=”center” text3=”± 1% Upk” text_align3=”center” text4=”± 0.7% Upk” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][tfdt_module_row text1=”Front chopped Impulses (LIC)” text_align1=”center” css_class1=”blue-bold-td” text2=”± 2% Upk” text_align2=”center” text3=”± 1% Upk” text_align3=”center” text4=”± 1% Upk” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][tfdt_module_row text1=”Time Parameters
(T1, Tp, Tc, T2, etc.)” text_align1=”center” css_class1=”blue-bold-td” text2=”± 3%” text_align2=”center” text3=”± 2%” text_align3=”center” text4=”± 1.8%” text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][tfdt_module_row text1=”Calibration” text_align1=”center” css_class1=”blue-bold-td” text2=”Factory
(ISO 17025 optional)
” text_align2=”center” text3=”Factory
(ISO 17025 optional)” text_align3=”center” text4=”ISO 17025″ text_align4=”center” _builder_version=”4.27.4″ _module_preset=”default” global_colors_info=”{}”][/tfdt_module_row][/tfdt_module]

Contact us for more information on our HiAS 744 Impulse Analyzing System

Request a Quote
