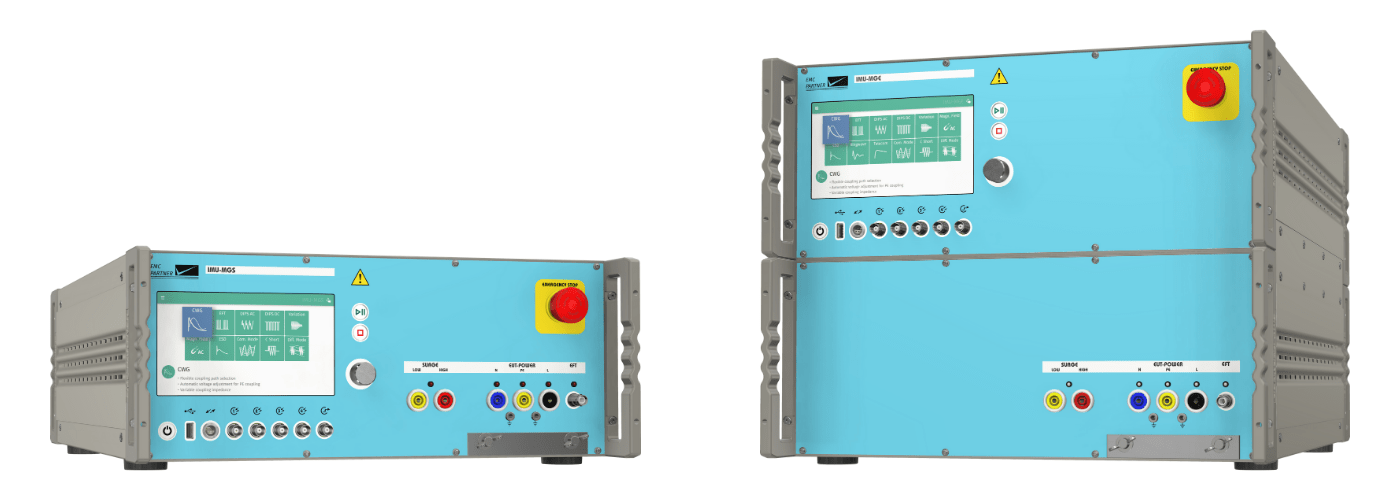

The IMU Series Immunity Test System from EMC Partner is the most flexible multi-function transient generator covering up to 10 IEC/EN compliance standards in one compact test system, including EFT, Surge, Ringwave, Voltage Dips/Interruptions, Magnetic Fields & more. The generators are upgradeable so that field technicians can add additional test capabilities later. Users can build test sequences with the drag-and-drop feature. This compact immunity test system has the highest test levels available. This transient generator is the perfect system for pre-compliance and complete compliance testing for development and production environments. The system features the latest capacitive touchscreen controller with Quad-Core processor and an intuitive Graphical User Interface.
Built-in help and on-screen setup diagrams make operating instructions obsolete and accelerate the learning experience. Internal measurements can be programmed with pass/fail criteria based on voltage and current impulses. We ensure personnel safety through an emergency stop and a warning lamp. Additional programmable BNC connectors allow a seamless integration into your test environment. The system features an integrated single-phase coupling decoupling network (CDN) rated up to 300VAC/16A or 300VDC/16A. A full range of three-phase power line CDNs is available up to 690VAC, 1500VDC, and 200A per phase and data line CDNs.
The optional TEMA3000 automation software suite enables users to run the transient generator from a PC comfortably. You can connect to the generator using an Ethernet port, and the software suite works on all current Windows operating systems. Software updates are free of charge. Parameter entry through the Remote EMC PARTNER Operating System (REPOS) interface reduces learning time for users familiar with the generator hardware. TEMA3000 allows remote control of single and complex test sequences, save and recall tests and sequences, test report generation, oscilloscope measurement integration, and a library of pre-programmed test routines according to IEC basic and product standards.
EFT and Surge Generator Highlights:
One touch parameter editing in run state
Impulse stability over long periods
Intuitive multi-touch graphical interface
Upgradeable hardware to increase test capability
Test report in three user selectable formats
Brochure:
IMU-MGS & IMU-MGE Transient EFT Generators
IMU-MGS: Standards Covered
IEC 61000-4-2 Electrostatic Discharge
IEC 61000-4-4 Electrical Fast Transients (EFT / Burst)
IEC 61000-4-5 Surge Combination Wave
IEC 61000-4-8 Power Frequency Magnetic Field
IEC 61000-4-9 Impulse Magnetic Field
IEC 61000-4-11 Voltage Dips, Interruptions & Variations <16A
IEC 61000-4-16 Common Mode
IEC 61000-4-19 Differential Mode
IEC 61000-4-34 Voltage Dips, Interruptions & Variations >16A
ANSI C37.90.1 Electrical Fast Transients
IMU-MGE: Standards Covered
IEC 61000-4-2 Electrostatic Discharge
IEC 61000-4-4 Electrical Fast Transients (EFT / Burst)
IEC 61000-4-5 Surge Combination Wave
IEC 61000-4-5 10/700us Telecom Wave
IEC 61000-4-8 Power Frequency Magnetic Field
IEC 61000-4-9 Impulse Magnetic Field
IEC 61000-4-11 AC & DC Voltage Dips, Variation, and Interruption
IEC 61000-4-16 Common Mode
IEC 61000-4-19 Differential Mode
IEC 61000-4-29 DC Voltage Dips, Interruptions & Variations
IEC 61000-4-34 Voltage Dips, Interruptions & Variations >16A
ANSI C37.90.1 Electrical Fast Transients
ANSI C62.41 Surge & Ring Wave
Available Tests with Transient EFT Generators
ESD Electrostatic Discharges
- up to 16kV
- According to IEC/EN 61000-4-2
Electric Fast Transient / Burst (EFT)
- up to 8kV
- According to IEC/EN 61000-4-4
Combination Wave /Surge (CWG)
- up to 8kV
- According to IEC/EN 61000-4-5, ANSI C62.41
Telecom Impulse (10/700)
- up to 8kV
- According to IEC/EN 61000-4-5, ITU-T K.44
Ring Wave 100kHz (Ring)
- up to 8kV
- According to IEC/EN 61000-4-12, ANSI C62.41
Common Mode (CM)
- up to 35V continuous / 330V short
- According to IEC/EN 61000-4-16
Differential Mode (DM)
- 4.4A / 25V
- According to IEC/EN 61000-4-19
AC & DC Dips, Variations and Interruptions
- According to IEC/EN 61000-4-11 /-29 /-34
Magnetic Field / Pulse
- According to IEC/EN 61000-4-8 / -9
TEMA3000 Automation Software
Drag and drop technology
Save & recall test setups and complex test sequences
Create custom test reports
Integrated DSO measurements into test reports
Library of predefined test routines according to standards
Reduced learning curve
Compatible with all new EMC Partner generators with EPOS control
