HTP-2 Digital PD Detector

ohv diagnostic

The HTP-2 is a simple, high resolution stand-alone PD detector that can be used for various PD testing applications according to IEC 60270. There are 3 versions available:

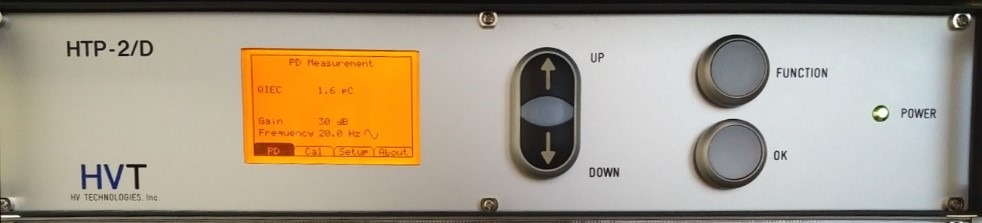

  1. HTP-2/D – alphanumeric LCD is situated on the front panel of the detector showing the measuring values in pC and the frequency of the applied test voltage.
  2. HTP-2/W – measuring data access is given via web browser with calibration, test voltage, charge, and various diagrams.

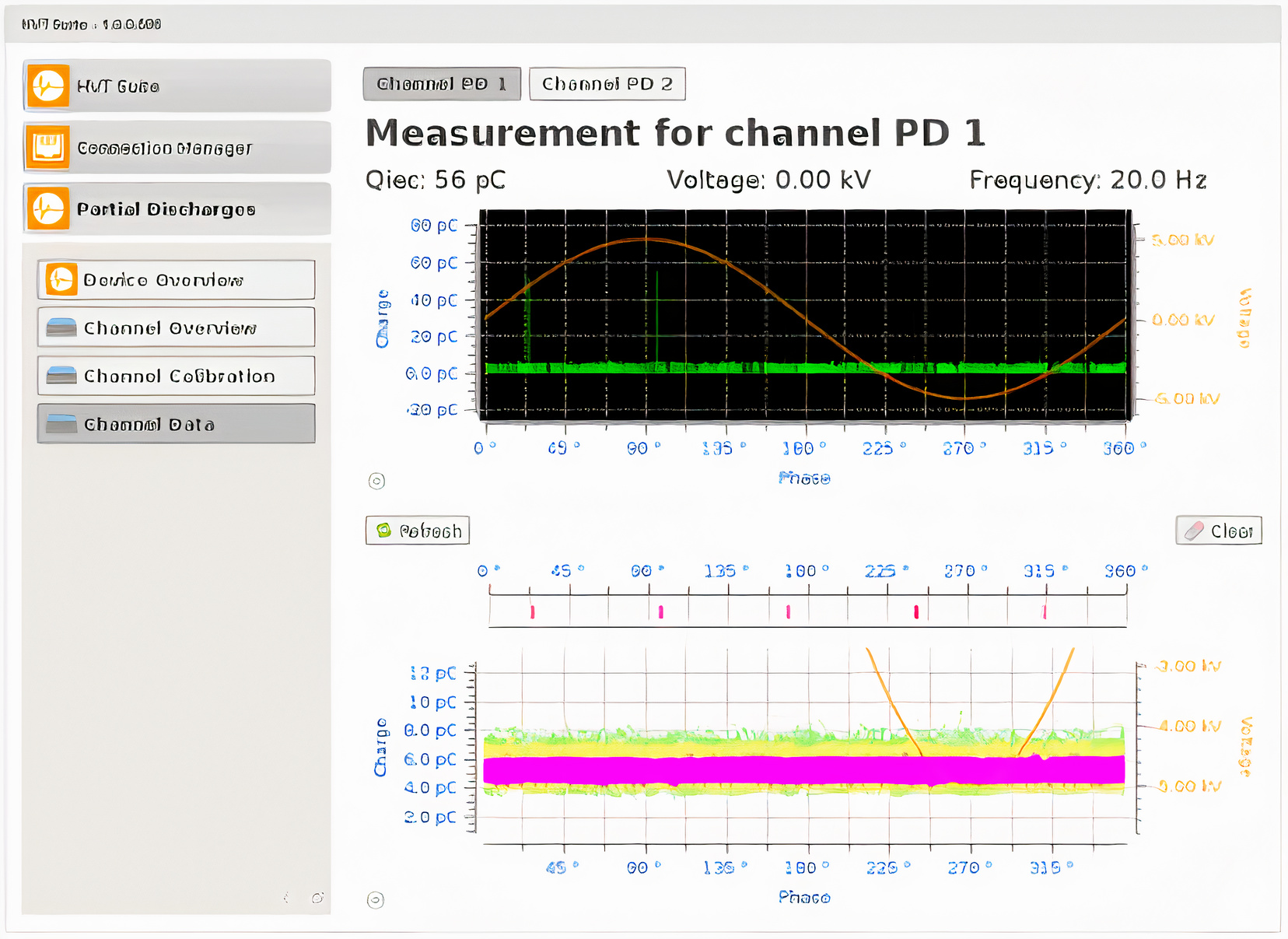

  3. HTP-2/S –  PD detector is supplied with Software Suite for PC operation and with advanced functionality with recording of tests and replay of results.

HTP-2 Features

  • Simple PD detector for measuring PD according to IEC 60270
  • PD input and voltage input for synchronization signal
  • Lightweight and compact

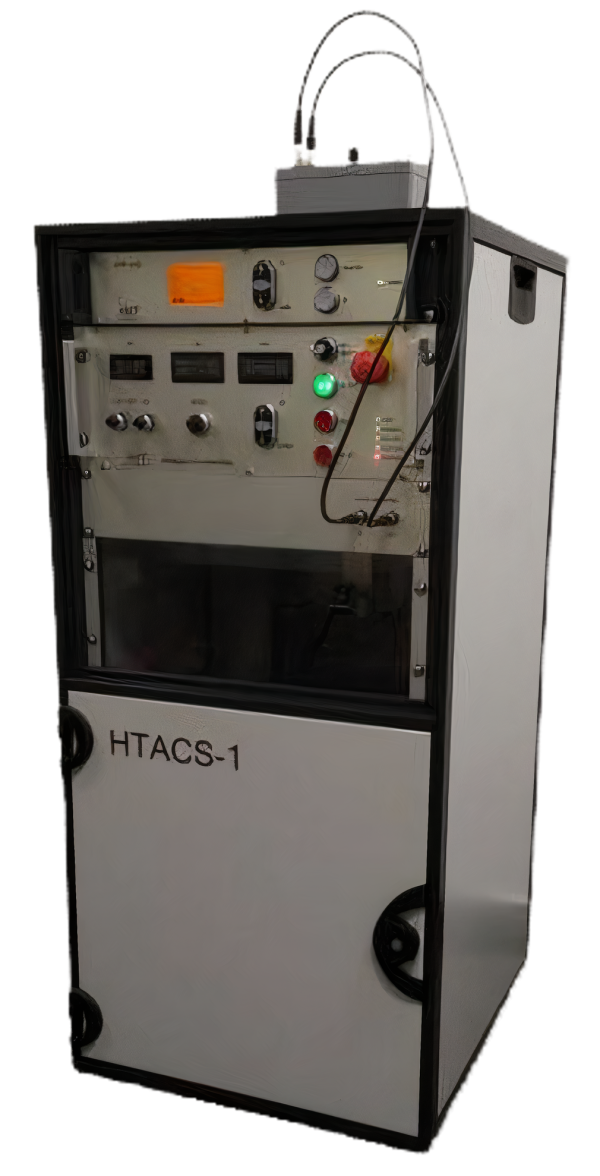

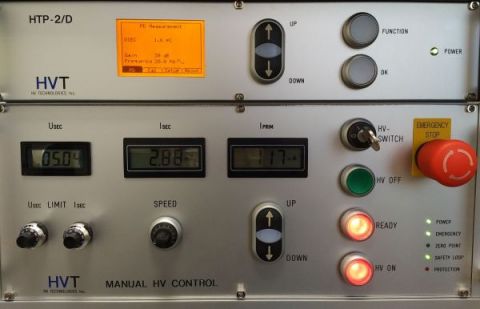

  • Various designs available: benchtop unit, 19″ rack unit, or fitted in a Pelicase
  • Hardware ready for upgrade with multiple measuring channels, gating, or optional remote software for operation and analysis
