Damped AC Test System DAC H300

ohv diagnostic

The Damped Alternating Current (DAC) high voltage H300 is an exceptionally compact, lightweight, and versatile system for testing and diagnosis of high voltage transmission cables up to 288 kVpeak (204 kVrms). It is programmable and features automatic withstand voltage test, partial discharge (PD) measurement and analysis as well as PD localization. Control and analysis are user-friendly using the intuitive software.

DATA SHEET:     Advanced DAC Test System H300

DAC H300 Features

  • Withstand voltage testing and PD analysis as per IEC 60060-3 and IEEE 400.4
  • Loss factor estimation (tan delta)
  • Maximum charging and peak voltage 288 kV
  • Includes 4 units, approx. 700 kg total
  • Rugged and robust transportation and storage cases

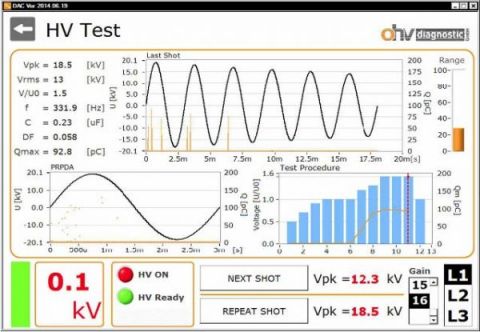

  • Easy and intuitive operation with included diagnostic software
