EMC Partner ESDEX ESD Gun

Home 9 EMC Test Equipment 9 IEC Transient Generators 9 EMC Partner ESDEX ESD Gun

EMC Partner

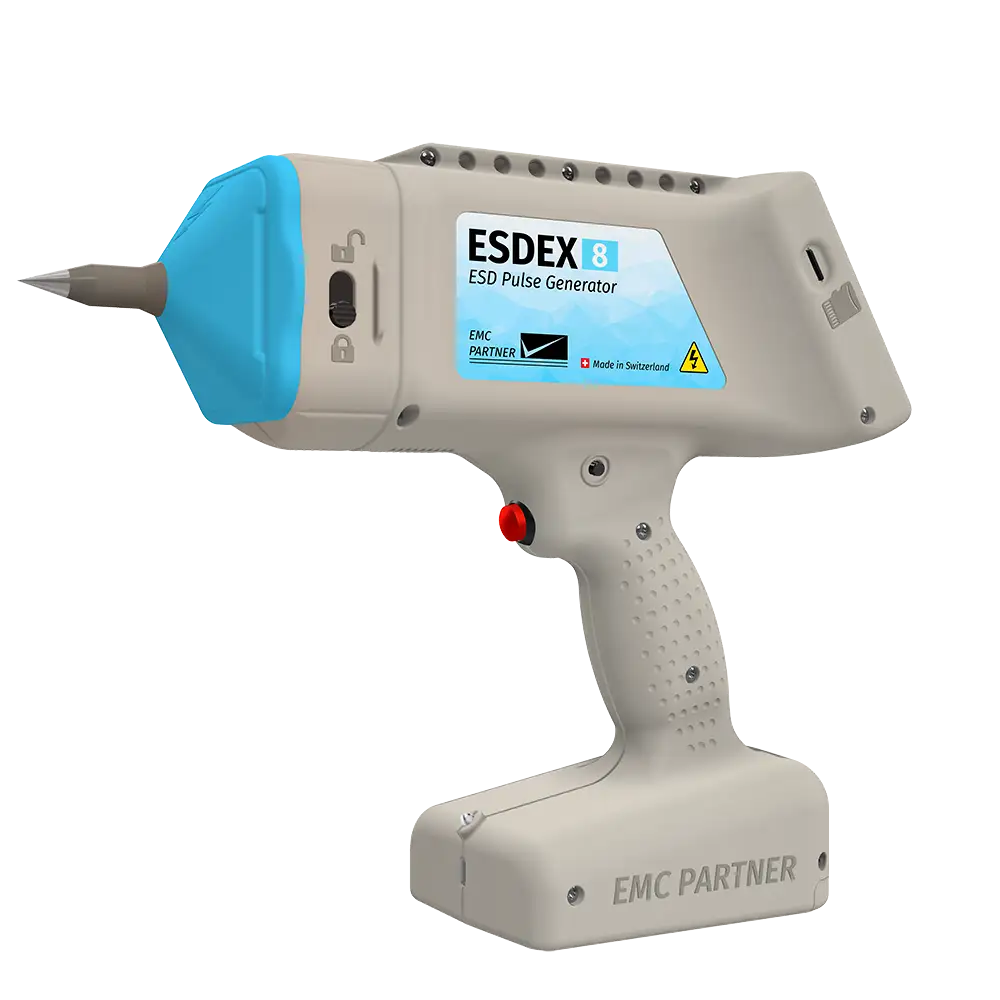

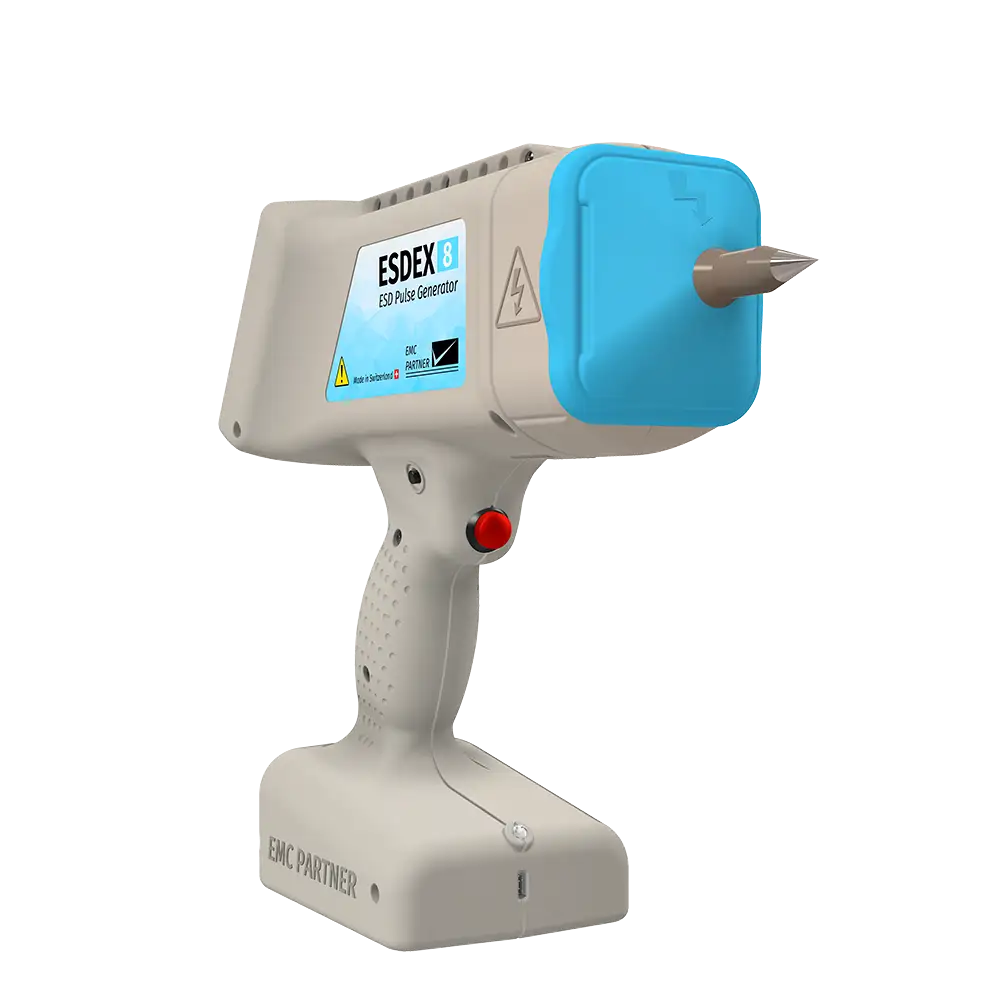

ESDEX series generators represent the latest innovation in ESD testing up to 30 kV.

Designed and manufactured by EMC PARTNER AG, they are available in 8 kV, 16 kV, and 30 kV versions and support a wide range of interchangeable RC networks to ensure full compliance with the latest international standards, including IEC 61000-4-2 Ed.3, ISO 10605, RTCA DO-160 Section 25, and MIL-STD-461 CS118.

A comfortable and efficient ESD testing process is ensured by a perfectly balanced and ergonomically optimized design. The precisely engineered balance point allows effortless movement in any direction or angle, enabling long test sessions with minimal strain.

The large 4” capacitive touchscreen offers a wide viewing angle and excellent readability from any position. Compared to traditional resistive screens, it delivers a modern, fast, and highly responsive user experience.

Featuring cutting-edge components, advanced interface design, and state-of-the-art communication technology, the ESDEX series meets today’s demands for smart operation, modern connectivity, and high performance.

Its modular architecture provides maximum flexibility, allowing users to configure the generator precisely to their application requirements.

ESDEX Brochure
ESDEX Infosheet
ESDEX Datasheet

Key Characteristics

ESD Generators up to 30kV

Available in 8, 16 , and 30 kV

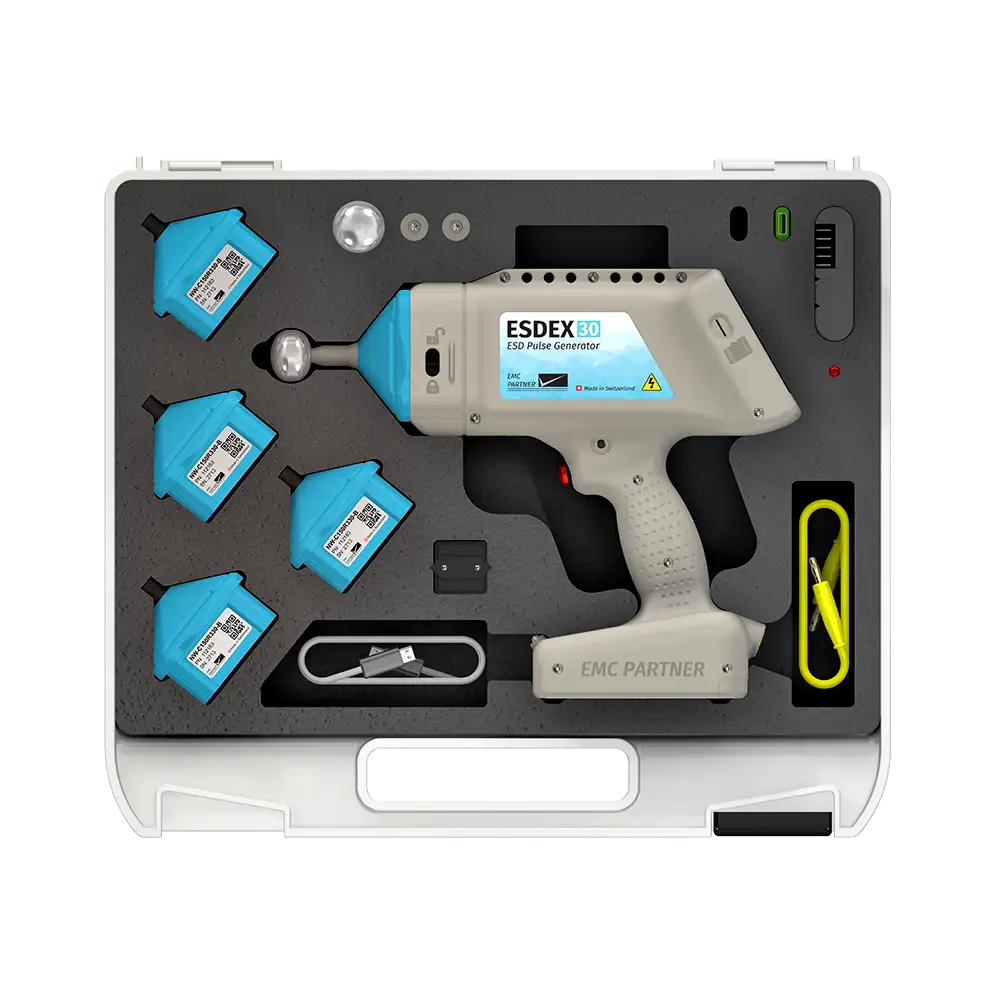

Exchangeable RC networks

Customizable with various options & features

Upgradeable 16 to 30 kV

Free lifelong firmware upgrades

Highlights

Ergonomic handling – perfectly balanced

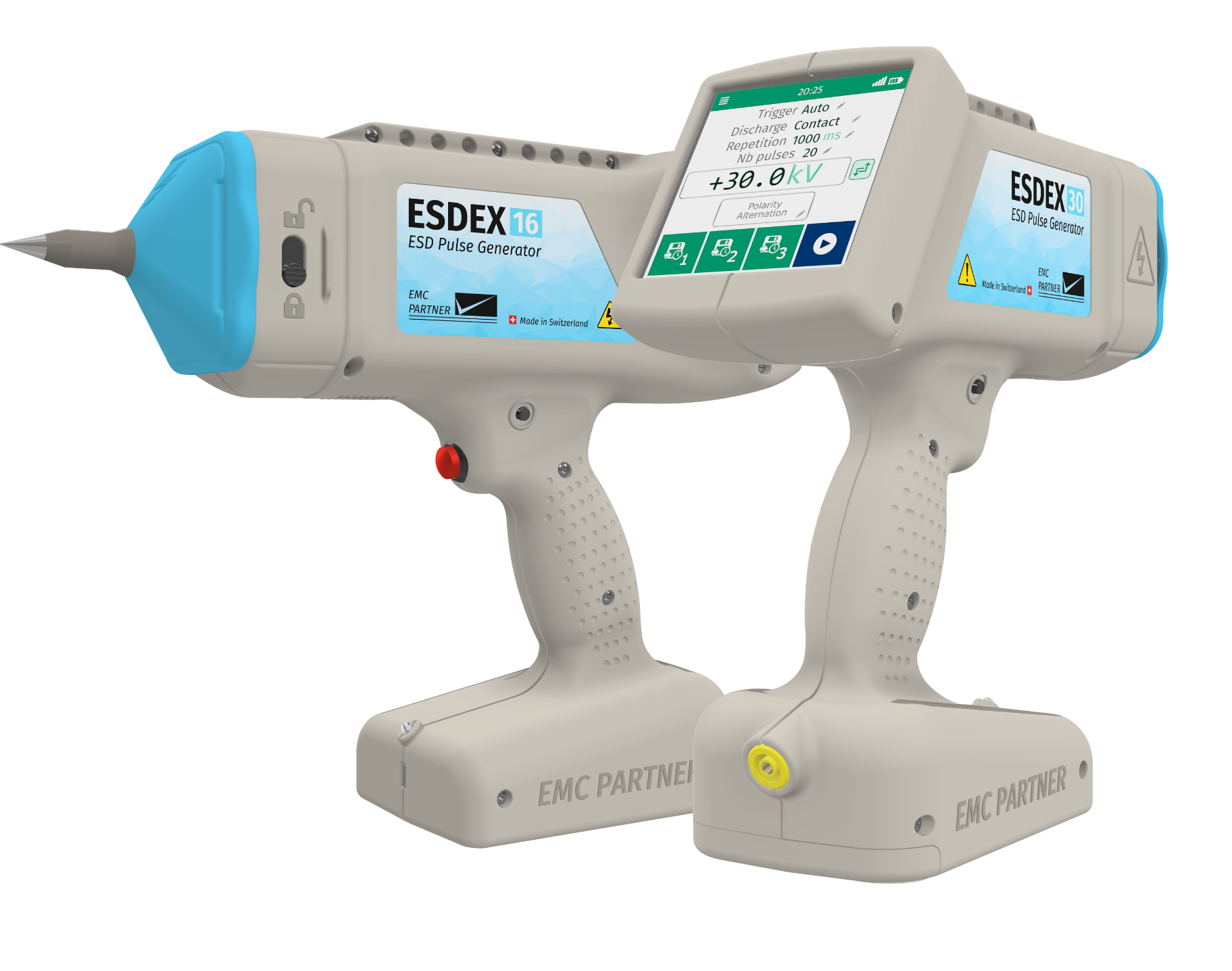

4” large capacitive touchscreen

Intuitive and smart operation

Create user defined test plans

Programmable side buttons – single hand operation

Direct report generation on the generator (PDF, CSV, HTML)

Rechargeable battery – USB-C fast charging (80 min)

Standards:

IEC 61000-4-2

ISO 10605

MIL-STD-461 CS118

DO160 Section 25

FMC1278

GMW 3097

MIL-STD-331

JOTP-062

STANAG 4239

MIL-STD-883

GR78-CORE

JEDEC JS-001

Standard RC Network ESDEX RC Network Options
With Bleedoff Without Bleedoff
IEC 61000-4-2
 150pF / 330 Ω
200 pF / 50 Ω 		NW-C150R330-B
NW-C200R50-B 		NW-C150R330
NW-C200R50
ISO 10605 150pF / 330 Ω
150pF / 2000 Ω
330pF / 330 Ω
330pF / 2000 Ω 		NW-C150R330-B
NW-C150R2000-B
NW-C330R330-B
NW-C330R2000-B 		NW-C150R330
NW-C150R2000
NW-C330R330
NW-C330R2000
MIL-STD-461 CS118 150pF / 330 Ω NW-C150R330-B NW-C150R330
DO-160 Sec25 150pF / 330 Ω NW-C150R330-B NW-C150R330
MIL-STD-883
JEDEC JS-001 		100pF / 1500 Ω NW-C100R1500-B-M NW-C100R1500-M
MIL-STD-331 500pF / 500 Ω
500pF / 5000 Ω 		NW-C500R500-B
NW-C500R5000-B 		NW-C500R500
NW-C500R5000

Accessories:

A complete range of ESD testing accessories is available to complete a professional ESD test setup according to your exact needs.

ESD-TARGET
ESD-VERI-TARGET
ESD-VERI-TARGET-ADAPTER
ESD-VERI-V
ESDEX-STAND
ESDEX-GND-SUPPORT
ESD-VCP50
ESD-BLEEDER-CABLE-150
ESD-BLEEDER-CABLE-200
ESDEX-H-FIELDS
ESDEX-E-FIELDS
ESD-HCP-AUTO
ESD-HCP-AUTO LARGE
ESDEX-BATTPACK-4C
2 Ohm gold plated target. acc. to IEC 61000-4-2 and ISO 10605. Including SMA cable & 2 x20dB attenuators. Max. 30kV ESD voltage
Adapter for ESD-TARGET calibration. Gold plated. Lifetime protection against corrosion. N-type male connector on input side
Calibration Adapter for ESD-VERI-TARGET. Gold plated. Lifetime protection against corrosion. N-type female connector on input side
ESD Charging voltage measurement divider 20GOhm. ratio 1:20,000, Max. input voltage 32 kV. Input connector: MC. output connector: BNC
Carbon tripod support for ESD testing as per IEC 61000-4-2, ISO 10605. Adjustable Height (15 - 139 cm). ESDEX-CABLE-PULLBACK must be ordered separately
ESDEX return cable pullback stand for ESD waveform verification. In accordance with IEC 61000-4-2 Ed3. Requires ESDEX-STAND.
ESD Vertical Coupling Plate IEC 61000-4-2 with 2 x 470kOhm
ESD cable 1.5m. 2 x 470kOhm Bleeder resistors acc. to IEC 61000-4-2. For use with HCP or deionization. Up to 30kV
ESD cable 2m. 2 x 470kOhm Bleeder resistors acc. to IEC 61000-4-2. For use with HCP or deionization. Up to 30kV
Magnetic field loop for ESDEX. Generates rapidly changing magnetic field for weak-points analysis. Can be used with ESDEX8, 16 and 30
Electric field plate for ESDEX. Simulates static induction of E-Field for weak-points analysis. Can be used with ESDEX8, 16 and 30
ESD Indirect Coupling-Plane as per ISO 10605 appendix F
ESD coupling plane as per ISO 10605 appendix F DUT area 600 x 500mm
Powerful 4-Cells battery pack with 6900mAh for extended ESD testing. The ideal high-performance alternative to the standard battery

Frequently Asked Questions

Can the ESDEX be upgraded after delivery?

Yes. The 16 kV version is upgradeable to 30 kV via factory upgrade. The 8 kV version is designed as an economical model and is not upgradeable.

What applications is the ESDEX designed for?

The ESDEX is designed for household electronics, automotive electronics, avionics systems, military equipment and general EMC compliance testing

What type of display does the ESDEX use?

The ESDEX features a 4-inch capacitive touchscreen with wide viewing angle, color graphics, and intuitive navigation.

Can tests be saved directly on the generator?

Yes. The ESDEX allows quick save of test setups, user-defined ramp testing, sequence testing, real-time event marking and on-device report generation.

What operating modes are supported?

The ESDEX supports Contact Discharge (CD) up to 20Hz, Air Discharge (AD) and Fire Mode (high repetition burst mode) up to 500Hz.

Are RC networks interchangeable?

Yes. The ESDEX uses interchangeable RC networks with automatic RC network recognition for different standards and applications.

How are test reports transferred?

ESDEX generates reports directly on the ESD generator. Reports are available in PDF, CSV, or HTML format and can be transferred via the USB-C port, SD card, or software interface.

How long is the run time before a recharge is needed?

ESDEX includes a standard 2-cell rechargeable battery with approximately 14 hours of operating time on a full charge. An optional 4-cell rechargeable battery is available for extended run time.

How long does it take to charge the battery?

The battery supports fast charging via USB-C. Charging from 10% to 80% takes approximately 80 minutes.
